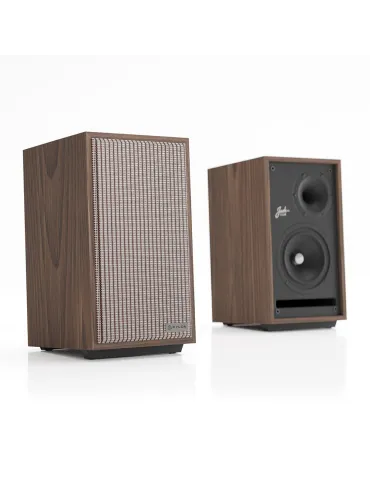

PYLON Audio Jade 10

Jade 10 is the smallest loudspeaker in the Jade series – compact, yet full of inner strength. Designed for top-tier sound quality, it features advanced, high-efficiency electroacoustic drivers. The midwoofer delivers fast, colorful bass and a natural, expressive midrange. The tweeter offers crisp, smooth, and non-fatiguing highs. Thanks to its high-sensitivity drivers, the Jade 10 plays with maturity, spaciousness, and a natural sound – even when paired with low-powered tube amplifiers. The internal crossover is carefully tuned and built from linear components and foil capacitors, ensuring seamless driver integration.

Flawless from bottom to top

In the lower and midrange frequencies, the Jade 10 uses a mid-woofer equipped with a modified cellulose cone with optimal internal damping, operating in a low-resonance suspension system. It’s supported by a powerful magnetic circuit with advanced field symmetrization and eddy-current-reducing rings, ensuring maximum clarity and precision. The high-frequency range is handled by a professional compression driver, used in larger Jade models. It is paired with a short, custom Tractrix horn, which delivers a detailed yet smooth sound with a widened sweet spot. The tweeter uses a CCAW voice coil, combining lightness and excellent conductivity for accurate, high-resolution reproduction. Dual-sided winding ensures better cooling and lower compression, allowing for higher acoustic output.

Jade 10’s vintage-inspired look is evident in its proportions, details, and classic grille with pin mounts. The cabinet, made from thick MDF with internal bracing, is stiff and resonance-resistant. Natural sheep wool damping eliminates standing waves and prevents unwanted sounds from escaping through the bass-reflex port. The front-firing bass reflex system, placed near the bottom of the front panel, performs best in near-boundary conditions – whether placed directly on the floor or on the dedicated accessory stand. Combined with its compact dimensions and the option to use an optional stand, Jade 10 is ideal for smaller rooms. The cabinet’s tilt, achieved through specially profiled feet, directs the sound wave toward the listener’s ear level, enabling ideal listening conditions even from low placement.
