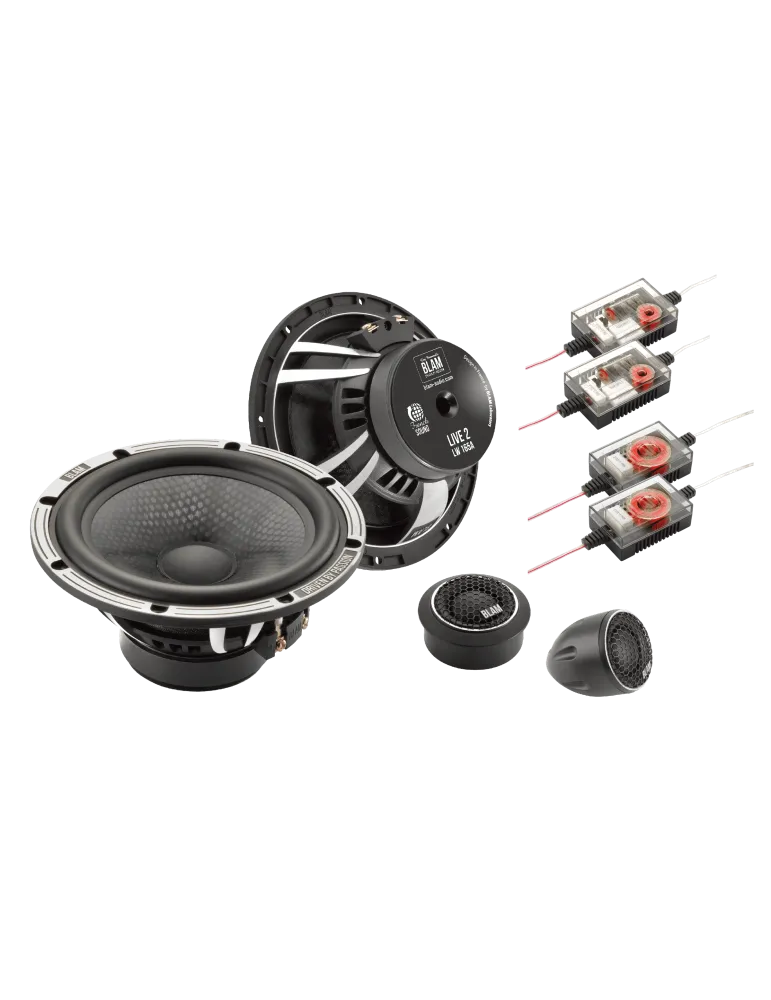

BLAM Live L165A Acoustic 16.5cm component speakers

L165A HIGH FIDELITY WOOFER
165 mm (6.5″) woofer
Max power 140 W – Nominal power 70 W
Frequency response 60 Hz – 9 kHz
Sensitivity 94 dB – Impedance 2 Ω

Machined cast aluminium basket – Epoxy resin and glass fiber cone – Butyl rubber surround – Long life “Conex” damper – 28 mm (1.1’’) voice coil with kapton former – 80 mm x 15 mm (3.1’’ x 0.6’’) motor assembly – Thick magnetic circuit 5 mm

LT25 HIGH QUALITY TWEETER
25 mm (1’’) high quality soft dome tweeter
Max power 100 W – Nominal power 15 W
Frequency response 2.5 kHz – 25 kHz
Sensitivity 91.6 dB – Impedance 3 Ω
High efficiency N38 neodymium motor

BFW02 HIGH QUALITY CROSSOVER
Low pass 12 dB/octave crossover

BFT02 HIGH QUALITY CROSSOVER
High pass 12 dB/octave crossovers
Adjustable tweeter level to +3 dB, 0 dB or attenuated -3 dB
