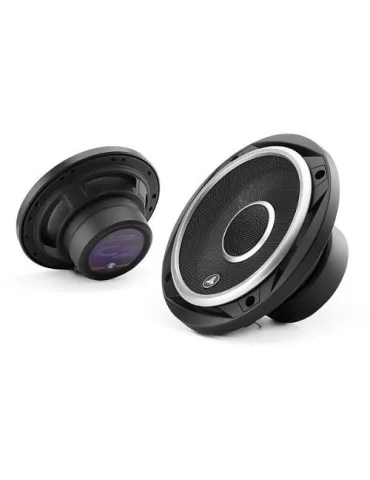

JL AUDIO C2-650X 16,5cm coaxial speakers (pair)

Kaina:
€279.00
Tax included Contact us for delivery time
Quantity
Delivery by order

Make an offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

General Specifications

Continuous Power Handling (RMS) 60 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
System Efficiency 91 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 59 Hz - 22 KHz ± 3 dB

Coaxial Physical Specifications

Table_Image
Frame Outer Diameter* (A) 6.5 in / 165 mm
Grille Tray Outer Diameter (B) 6.84 in / 174 mm
Motor Outer Diameter (C) 3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.45 in / 12 mm
Frontal Grille Protrusion*** (E) 0.85 in / 22 mm
Mounting Hole Diameter (F) 5.56 in / 141 mm
Mounting Depth (G) 2.44 in / 62 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
***Frontal grille protrusion measured from mounting surface
