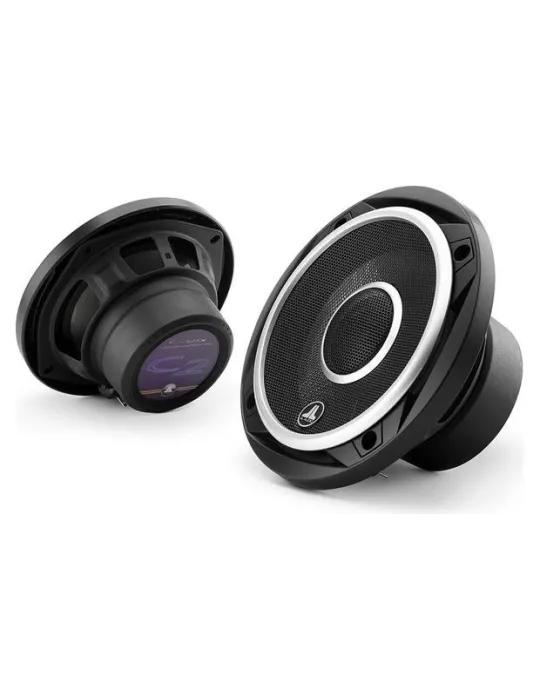

JL AUDIO C2-525X 13cm coaxial speakers (pair)

Kaina:
€279.00
Tax included Contact us for delivery time
Quantity
Delivery by order

Make an offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

General Specifications

Continuous Power Handling (RMS) 60 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
System Efficiency 89.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 63 Hz - 22 KHz ± 3 dB

Coaxial Physical Specifications

Table_Image
Frame Outer Diameter* (A) 5.20 in / 132 mm
Grille Tray Outer Diameter (B) 6.01 in / 153 mm
Motor Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.46 in / 12 mm
Frontal Grille Protrusion*** (E) 0.72 in / 18 mm
Mounting Hole Diameter (F) 4.56 in / 116 mm
Mounting Depth (G) 2.50 in / 64 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
***Frontal grille protrusion measured from mounting surface
