Klipsch RP-1600SW subwoofer

Klipsch RP-1600SW is an exceptionally powerful Reference Premiere powered subwoofer designed to deliver deep, dynamic and room-filling bass. It is particularly well suited to demanding home theater systems and larger listening spaces where impactful low-frequency performance is essential.

  • 16-inch ultra-long-throw Cerametallic woofer with 800 watts RMS amplification.
  • Deep bass extension down to 14.5 Hz.
  • Front-firing Aerofoil slot port designed to minimize turbulence.
  • Optional wireless connectivity with the Klipsch WA-2 adapter.
Klipsch
€1,499.00
Tax included
Quantity
Available by order

Loyalty Points
Earn 149 points  when you buy me!
worth €44.70!
  Manufacturer warranty for all products
  Fast and secure delivery
  14 days return policy
Description

Klipsch RP-1600SW – High-Performance 16-Inch Reference Premiere Subwoofer

Klipsch RP-1600SW is a powerful Reference Premiere powered subwoofer engineered to deliver exceptional low-frequency extension, high acoustic output and dynamic bass performance. Combining a newly designed 16-inch ultra-long-throw Cerametallic woofer, an 800-watt RMS Class D amplifier and an acoustically optimized front-firing Aerofoil slot port, it is designed for demanding home theater and high-performance audio systems.

The RP-1600SW achieves a frequency response of 14.5–175 Hz (±3 dB) and a maximum acoustic output of 125.5 dB, delivering the low-frequency capability required for powerful cinematic effects and dynamic music reproduction.

Its Reference Premiere design balances amplifier power, driver performance and cabinet volume to maximize bass extension, output and accuracy.

Key Features

  • 16-inch ultra-long-throw Cerametallic woofer with a rigid, lightweight spun-copper cone.
  • 800 watts RMS / 1600 watts peak from a high-efficiency Class D amplifier.
  • 14.5–175 Hz frequency response (±3 dB) for exceptionally deep bass extension.
  • 125.5 dB maximum acoustic output for demanding home theater applications.
  • Front-firing Aerofoil slot port designed to minimize turbulence and port noise.
  • Analog preamplifier stage combined with efficient Class D output amplification.
  • Adjustable low-pass crossover and variable phase for system integration.
  • Dual RCA / LFE line-level inputs for compatibility with home theater and stereo components.
  • WA-2 wireless adapter compatibility for optional wireless signal transmission.
  • Rigid MDF enclosure with durable, scratch-resistant Ebony Vinyl finish.
  • Shock-absorbing rubber feet and protective woven cloth grille.
  • Five-year manufacturer warranty as specified in the official product documentation.

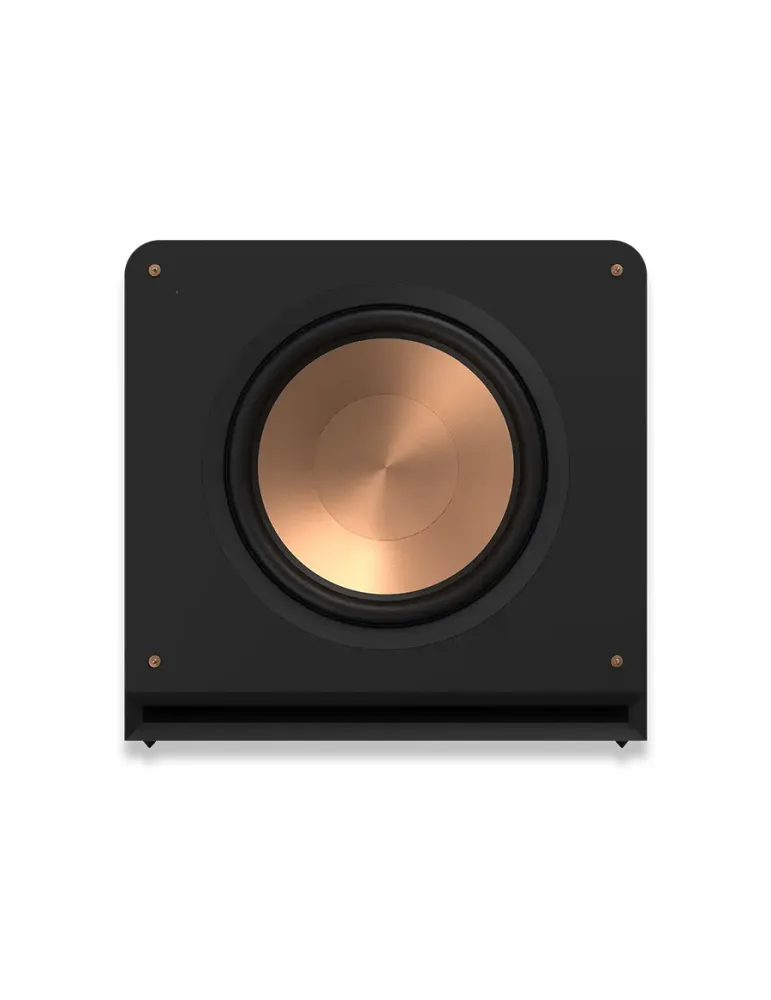

16-Inch Ultra-Long-Throw Cerametallic Woofer

The RP-1600SW features a newly developed 16-inch ultra-long-throw Cerametallic woofer designed to move substantial volumes of air while maintaining low distortion and high efficiency.

The spun-copper Cerametallic cone combines low mass with high rigidity, helping minimize unwanted cone breakup and supporting clean, powerful low-frequency reproduction.

The driver's extended excursion capability allows the RP-1600SW to reproduce demanding bass effects with substantial acoustic output.

By combining a large driver diameter with an optimized motor and suspension design, the RP-1600SW delivers the low-frequency performance required for cinematic soundtracks and dynamic music playback.

High-Efficiency 800-Watt RMS Class D Amplifier

Powering the RP-1600SW is a high-efficiency Class D amplifier rated at 800 watts RMS and 1600 watts peak.

The amplifier features an analog preamplifier stage designed to preserve the original signal path, while the Class D output stage provides the efficiency and power needed for substantial low-frequency output.

This combination is engineered to deliver impressive dynamics, detail and control across a wide range of listening levels.

The available amplifier power enables the large 16-inch driver to reproduce demanding bass transients and extended low-frequency effects with authority.

Deep Bass Extension to 14.5 Hz

With a specified frequency response of 14.5–175 Hz (±3 dB), the RP-1600SW reaches well into the deepest bass frequencies used in modern movie soundtracks.

Its maximum acoustic output of 125.5 dB provides substantial dynamic capability for demanding home theater applications.

This combination of low-frequency extension and output makes the RP-1600SW especially suitable for larger listening spaces and systems where powerful, physically engaging bass is a priority.

Front-Firing Aerofoil Slot Port

The RP-1600SW uses a front-firing bass-reflex enclosure with a proprietary Aerofoil slot port and specially developed internal geometry.

This design is engineered to minimize airflow turbulence and reduce unwanted port noise, allowing the subwoofer to reproduce deep bass with improved clarity.

The front-firing driver and port arrangement also provide flexibility when positioning the subwoofer within a room.

As with any high-performance subwoofer, final bass response depends on room acoustics, placement and system calibration.

Balanced Reference Premiere Performance

Klipsch developed its Reference Premiere subwoofers around an optimized relationship between amplifier power, driver capability and cabinet volume.

This balanced approach is intended to maximize low-frequency extension, output and detail while maintaining accurate response to changing audio signals.

The RP-1600SW applies this design philosophy on a large scale, using its 16-inch driver and powerful amplifier to deliver substantial bass performance.

Flexible Low-Pass Crossover and Phase Controls

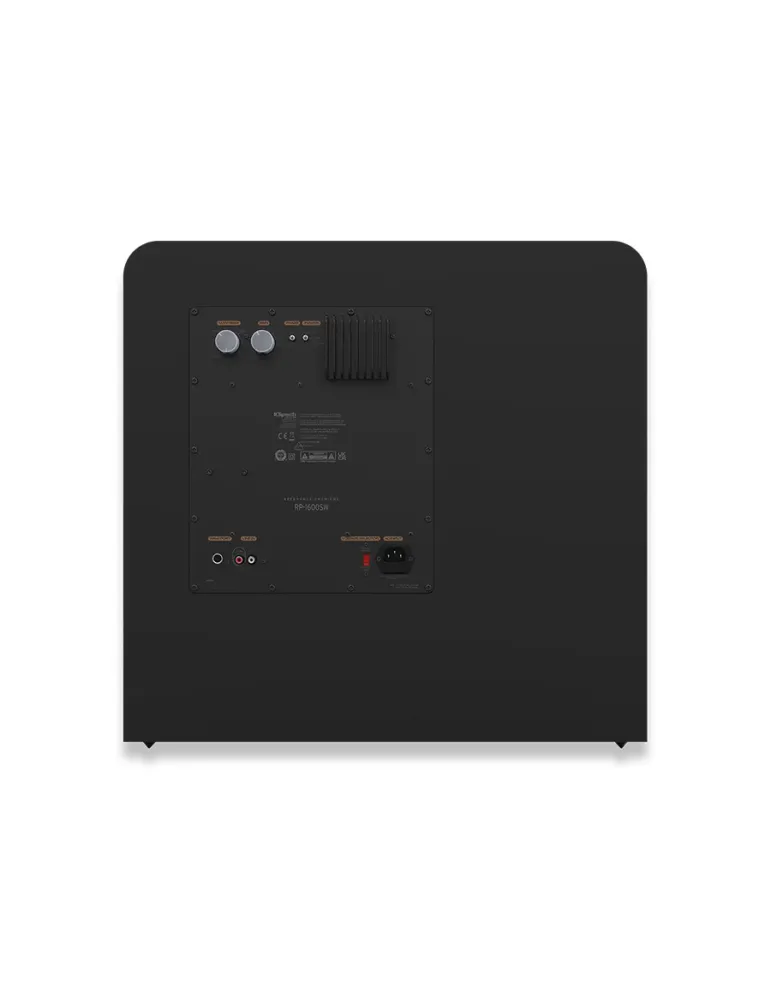

The rear amplifier panel provides adjustable low-pass crossover and variable phase controls, allowing the RP-1600SW to be integrated with different loudspeaker systems and listening environments.

The low-pass crossover helps determine the frequency range reproduced by the subwoofer, while the variable phase control assists in aligning its output with the main loudspeakers.

These adjustments help achieve a more consistent transition between the subwoofer and the rest of the audio system.

Dual RCA / LFE Inputs

The RP-1600SW includes dual RCA / LFE line-level inputs for connection to compatible AV receivers, surround sound processors and stereo components.

This connectivity allows the subwoofer to be integrated into a variety of home theater and two-channel audio systems.

Optional WA-2 Wireless Subwoofer Connectivity

The RP-1600SW supports the separately available Klipsch WA-2 Wireless Subwoofer Kit, allowing wireless transmission of the subwoofer signal.

This option provides greater placement flexibility by eliminating the need for a long audio signal cable between the subwoofer and the main audio system.

The RP-1600SW also supports the use of its RCA and wireless inputs with separate audio systems, such as a home theater system and a dedicated two-channel stereo setup.

The WA-2 wireless kit is sold separately. The subwoofer still requires a connection to mains power.

Durable MDF Cabinet and Ebony Vinyl Finish

The RP-1600SW is housed in a substantial MDF enclosure finished in scratch-resistant Ebony Vinyl with a wood-like appearance.

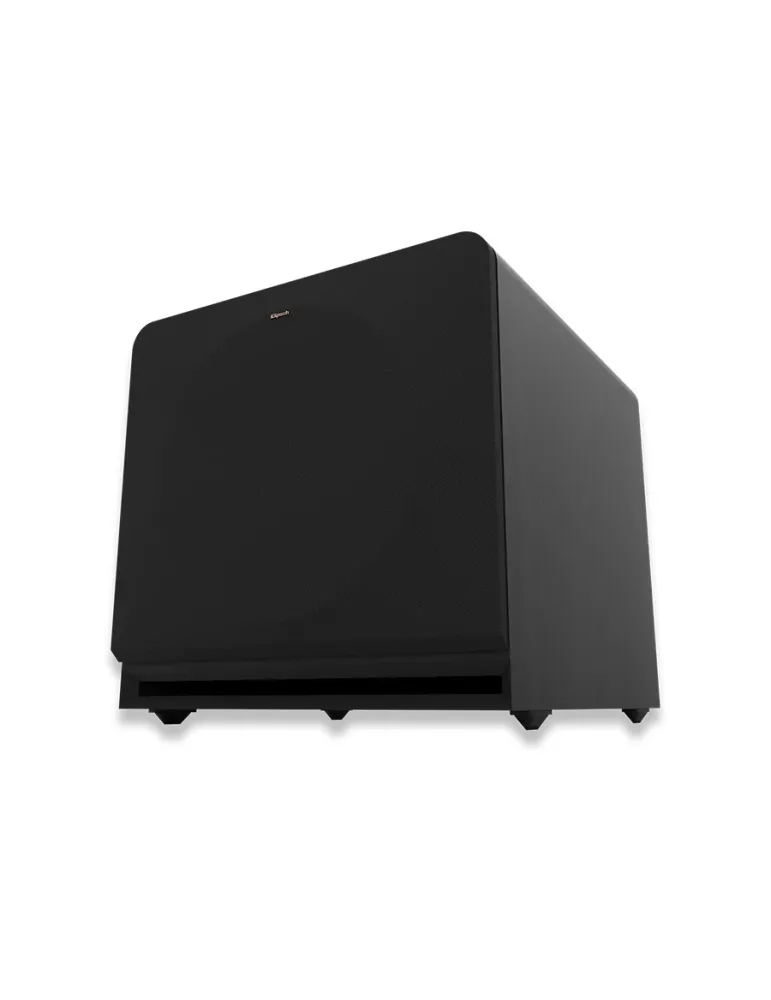

Design details include rounded cabinet corners, shock-absorbing rubber feet, steel grille posts and a durable woven cloth grille.

The cabinet measures 594 × 597 × 695 mm (H × W × D) and weighs 50.3 kg, reflecting the scale of its 16-inch driver and high-output bass-reflex construction.

Its large size should be considered when planning installation and placement within the listening room.

Klipsch RP-1600SW – Exceptional Bass for Demanding Home Theater Systems

Klipsch RP-1600SW combines a large 16-inch Cerametallic driver, an 800-watt RMS Class D amplifier and an advanced Aerofoil front-firing slot port to deliver deep, powerful and dynamic bass.

With extension down to 14.5 Hz, a maximum acoustic output of 125.5 dB, flexible tuning controls and optional wireless connectivity, it is an excellent choice for high-performance home theaters and larger listening environments where substantial low-frequency impact is essential.

Product Details
Klipsch

Data sheet

  • 800W RMS / 1600W MAX
  • 14.5Hz - 175Hz +/- 3dB
  • 50,3
  • 59,4 / 59,7 / 69,5
Specifications
General Specifications
Product TypePowered Subwoofer
SeriesReference Premiere
Enclosure TypeBass Reflex via Front-Firing Aerofoil Slot Port
Driver OrientationFront-Firing
Frequency Response14.5 Hz – 175 Hz (±3 dB)
Maximum Acoustic Output125.5 dB
Driver Specifications
Woofer16" Ultra Long Throw Cerametallic
Woofer Diameter16" (406.4 mm)
Cone MaterialSpun Copper Cerametallic
Amplifier Specifications
Amplifier TypeClass D with Analog Preamp Stage
Continuous Power (RMS)800 W
Peak Power1600 W
Standby Power Consumption0.5 W
Connectivity and Controls
Audio InputsDual RCA / LFE Line In
Wireless Adapter PortKlipsch WA-2 Wireless Port
Wireless CompatibilityKlipsch WA-2 Wireless Subwoofer Kit (Sold Separately)
Simultaneous InputsRCA and WA-2 Wireless Inputs
Low-Pass CrossoverAdjustable
Phase ControlVariable
Cabinet and Design
Enclosure MaterialMDF
Port DesignFront-Firing Aerofoil Slot Port with Proprietary Internal Flare Geometry
FinishScratch-Resistant Ebony Vinyl
GrilleWoven Cloth Grille with Steel Grille Posts
FeetShock-Absorbing Rubber Feet
Dimensions and Weight
Height594 mm (23.39")
Width597 mm (23.50")
Depth695 mm (27.35")
Net Weight50.3 kg (110.9 lbs)
