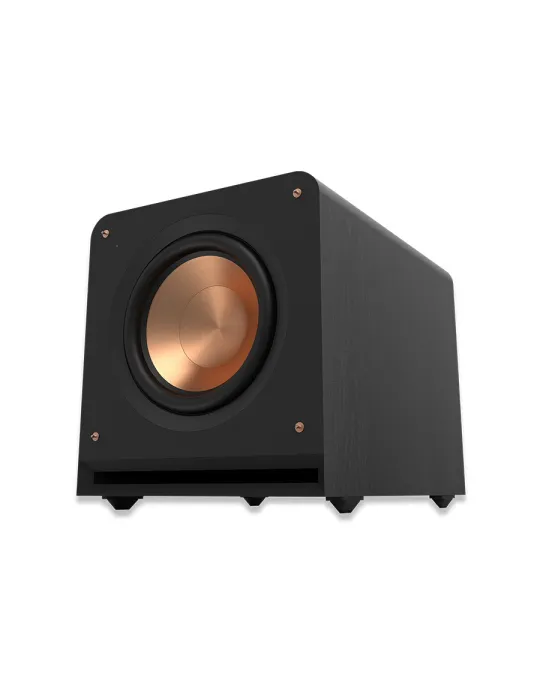

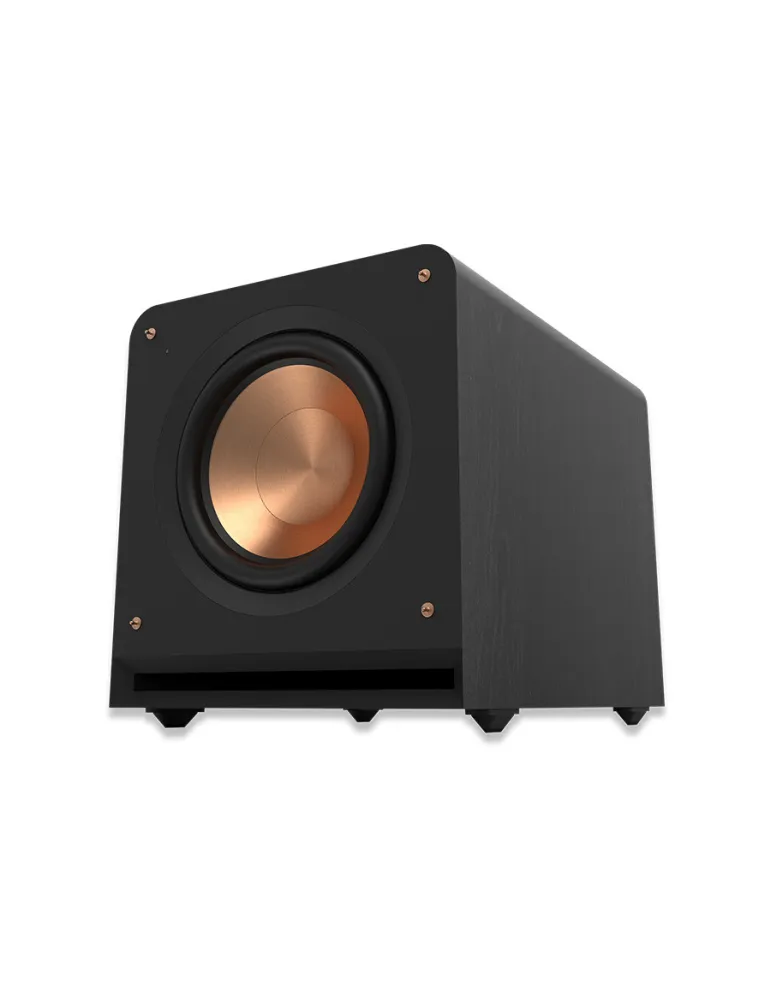

Klipsch RP-1200SW subwoofer
Klipsch RP-1200SW is a powerful Reference Premiere powered subwoofer designed to deliver deep, dynamic bass for home theater and stereo systems. Its 12-inch woofer and integrated amplifier provide substantial low-frequency output, while adjustable controls help achieve seamless integration with the main speakers.
- 12-inch ultra-long-throw Cerametallic woofer.
- 400 W RMS / 800 W peak Class D amplifier.
- Deep bass extension down to 16.5 Hz.
- Front-firing Aerofoil slot port and optional Klipsch WA-2 wireless connectivity.
Klipsch RP-1200SW – High-Performance 12-Inch Reference Premiere Powered Subwoofer
Klipsch RP-1200SW is a high-performance powered subwoofer from the Reference Premiere series, engineered to deliver deep, dynamic and controlled low-frequency reproduction. It combines a 12-inch ultra-long-throw Cerametallic woofer, a high-efficiency 400-watt RMS Class D amplifier and an optimized front-firing Aerofoil slot port.
Designed for both home theater and stereo applications, the RP-1200SW extends the low-frequency capabilities of a loudspeaker system while adding impact to movie soundtracks and music recordings. Its specified frequency response reaches 16.5–138 Hz (±3 dB), with a maximum acoustic output of 121 dB.
Key Features
- 12-inch ultra-long-throw Cerametallic woofer designed for powerful low-frequency reproduction.
- 400 W RMS / 800 W peak Class D amplifier with an analog preamplifier stage.
- 16.5–138 Hz frequency response (±3 dB) for extended deep bass.
- 121 dB maximum acoustic output for dynamic home theater performance.
- Front-firing Aerofoil slot port designed to minimize airflow turbulence and port noise.
- Adjustable low-pass crossover and variable phase for flexible system integration.
- RCA / LFE line-level inputs for compatible AV receivers and stereo components.
- Klipsch WA-2 wireless adapter compatibility for optional wireless signal transmission.
- MDF enclosure with scratch-resistant Ebony Vinyl finish and removable cloth grille.

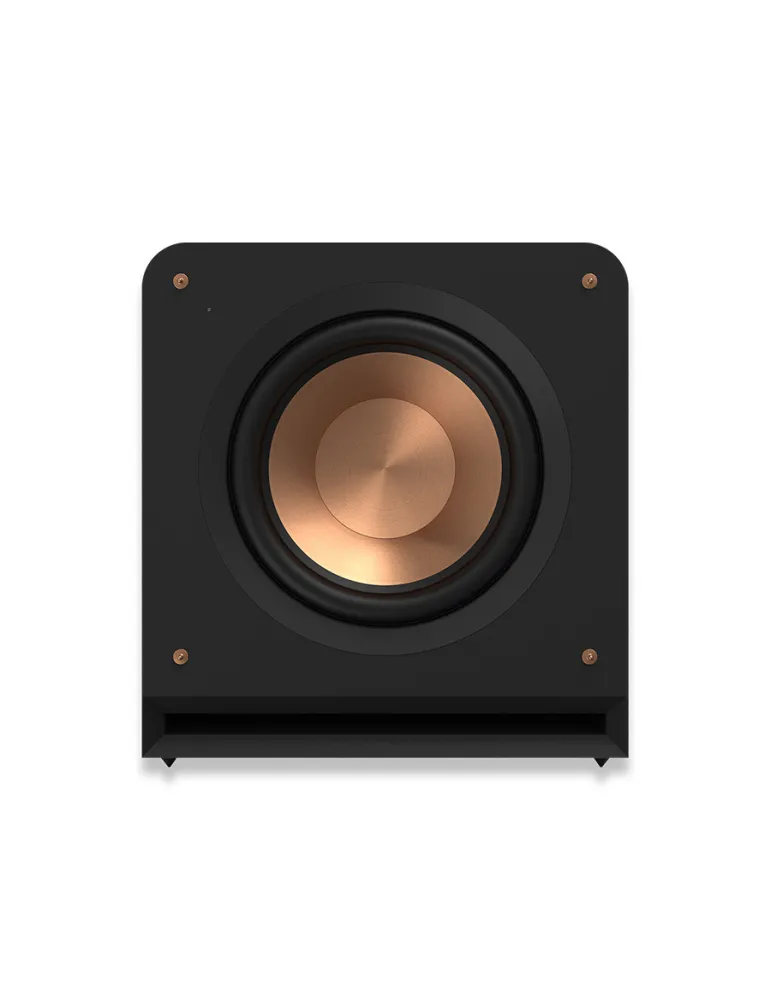

12-Inch Ultra-Long-Throw Cerametallic Woofer
The RP-1200SW features a 12-inch ultra-long-throw Cerametallic woofer engineered to deliver powerful low-frequency output through extended cone excursion.
The Cerametallic cone combines low weight with high rigidity, helping reduce unwanted cone breakup and distortion while supporting efficient bass reproduction.
This driver design enables the RP-1200SW to reproduce deep bass effects and dynamic musical passages with substantial impact.
High-Efficiency 400-Watt RMS Class D Amplifier
The integrated Class D amplifier delivers 400 watts RMS and 800 watts peak power.
It combines an analog preamplifier stage, designed to preserve the original signal path, with an efficient Class D output stage that provides the power required for demanding low-frequency reproduction.
This amplifier architecture is engineered to deliver substantial output, dynamic response and controlled bass performance.
Deep Bass Extension to 16.5 Hz
With a specified frequency response of 16.5–138 Hz (±3 dB) and a maximum acoustic output of 121 dB, the RP-1200SW provides extended low-frequency reproduction for home theater soundtracks and music.
Its deep bass capability helps reproduce low-frequency effects that add scale and impact to movies, while extending the bass response of a stereo loudspeaker system.
The RP-1200SW offers substantial bass performance in a smaller cabinet than the larger 14-inch and 16-inch Reference Premiere models.
Front-Firing Aerofoil Slot Port
The RP-1200SW uses a front-firing Aerofoil slot port with specially designed internal geometry to optimize airflow and minimize turbulence.
This design helps reduce unwanted port noise during powerful bass reproduction.
The front-firing driver and port arrangement also offer flexibility in room placement, although the final low-frequency response depends on the room acoustics, subwoofer position and system calibration.
Adjustable Low-Pass Crossover and Variable Phase

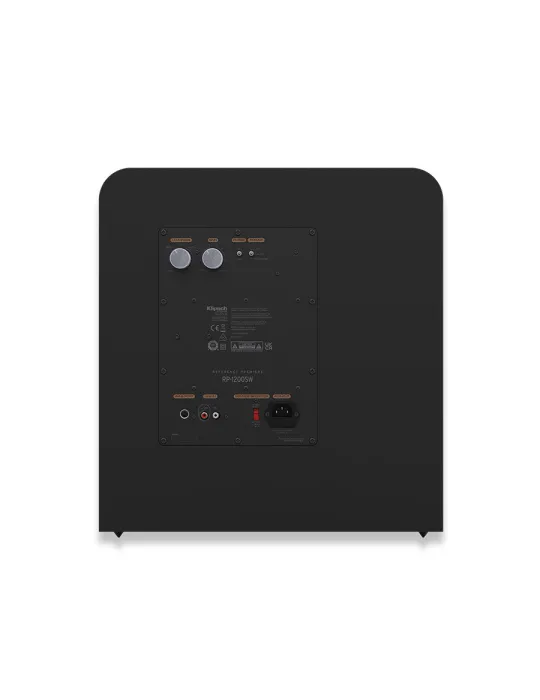

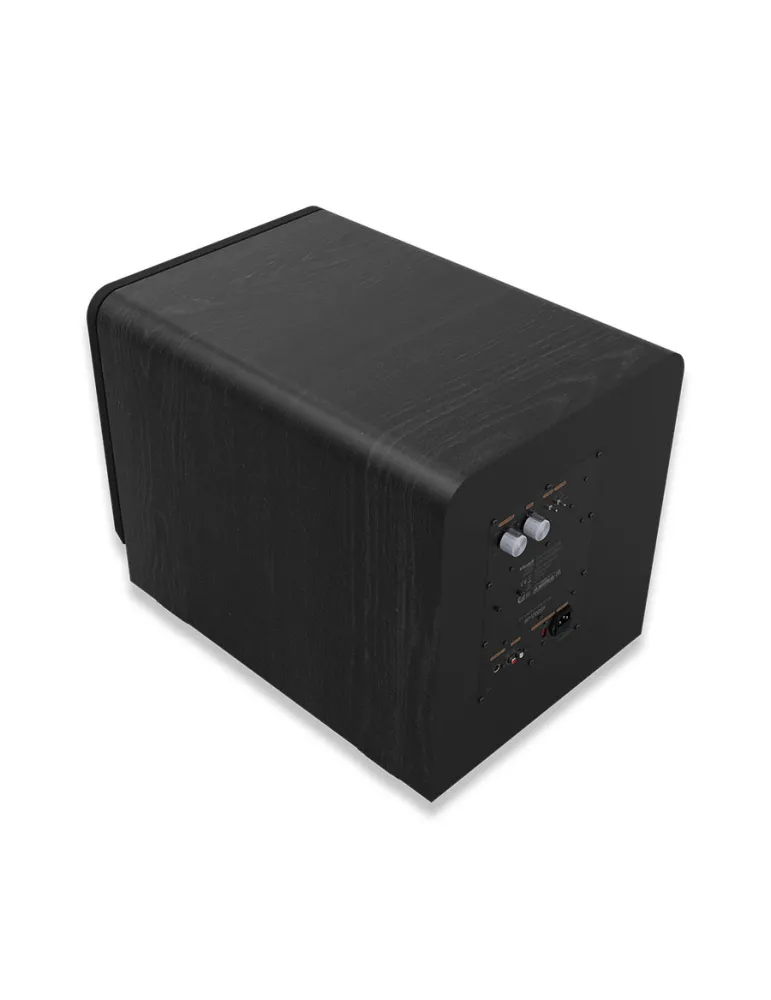

The rear amplifier panel provides adjustable low-pass crossover and variable phase controls, allowing the RP-1200SW to be integrated with different loudspeakers and listening environments.
The low-pass crossover determines the upper frequency range reproduced by the subwoofer, while the phase control helps align its output with the main speakers.
These adjustments support a smoother transition between the subwoofer and the rest of the audio system.
RCA / LFE Connectivity and Optional Wireless Operation
The RP-1200SW features RCA / LFE line-level inputs for connection to compatible AV receivers, surround processors and stereo components.
It also supports the separately available Klipsch WA-2 Wireless Subwoofer Kit, which enables wireless transmission of the audio signal and provides additional placement flexibility.
The RCA and wireless inputs can be used simultaneously, allowing the subwoofer to receive signals from separate home theater and stereo systems.
The WA-2 kit is sold separately. A mains power connection is still required.
Durable MDF Cabinet and Ebony Vinyl Finish
The RP-1200SW is housed in a sturdy MDF enclosure with a scratch-resistant Ebony Vinyl finish that resembles natural wood.

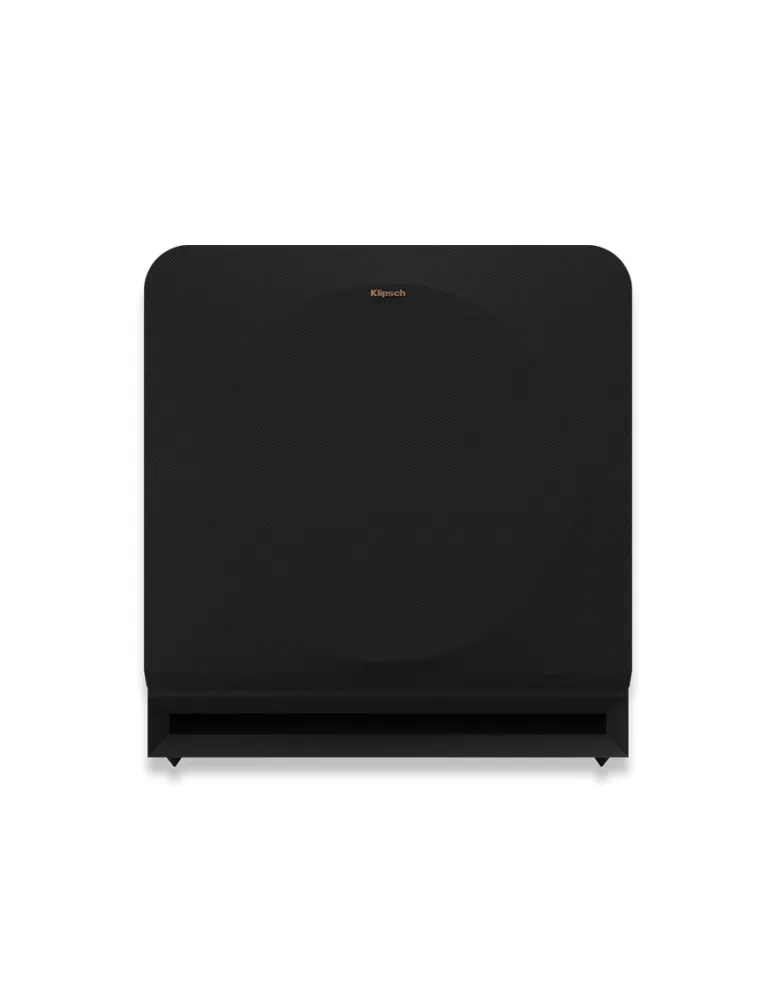

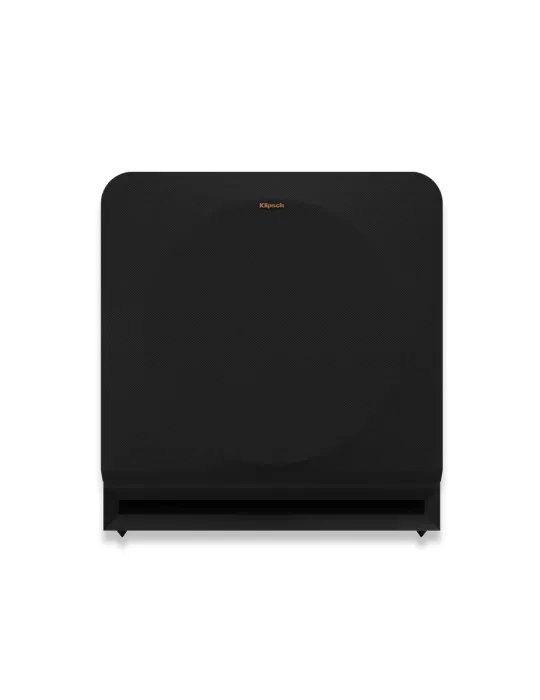

Rounded cabinet corners, shock-absorbing rubber feet, steel grille posts and a removable woven cloth grille complete the design.
Its appearance complements other Reference Premiere loudspeakers, making it suitable for a coordinated Klipsch home theater system.
Klipsch RP-1200SW – Deep, Dynamic Bass for Movies and Music
Klipsch RP-1200SW combines a 12-inch ultra-long-throw Cerametallic woofer, a 400-watt RMS Class D amplifier and an advanced front-firing Aerofoil slot port.
With bass extension down to 16.5 Hz, adjustable integration controls and optional wireless connectivity, it is a versatile solution for home theater and stereo systems requiring powerful, extended low-frequency performance.
Data sheet
- 400W RMS / 800W MAX
- 16,5Hz - 138Hz +/- 3dB
- 31,1
- 48 / 43,2 / 65,8
| General Specifications | |
| Product Type | Powered Subwoofer |
| Series | Reference Premiere |
| Enclosure Type | Bass Reflex via Front-Firing Aerofoil Slot Port |
| Driver Orientation | Front-Firing |
| Frequency Response | 16.5–138 Hz (±3 dB) |
| Maximum Acoustic Output | 121 dB |
| Driver Specifications | |
| Woofer | 12" Ultra Long Throw Cerametallic |
| Woofer Diameter | 12" (304.8 mm) |
| Cone Material | Spun Copper Cerametallic |
| Amplifier Specifications | |
| Amplifier Type | Class D with Analog Preamp Stage |
| Continuous Power (RMS) | 400 W |
| Peak Power | 800 W |
| Standby Power Consumption | 0.5 W |
| Connectivity and Controls | |
| Audio Inputs | Dual RCA / LFE Line In |
| Wireless Adapter Port | Klipsch WA-2 Wireless Port |
| Wireless Compatibility | Klipsch WA-2 Wireless Subwoofer Kit (Sold Separately) |
| Simultaneous Inputs | RCA and WA-2 Wireless Inputs |
| Low-Pass Crossover | Adjustable |
| Phase Control | Variable |
| Cabinet and Design | |
| Enclosure Material | MDF |
| Port Design | Front-Firing Aerofoil Slot Port with Proprietary Internal Flare Geometry |
| Finish | Scratch-Resistant Ebony Vinyl |
| Grille | Woven Cloth Grille with Steel Grille Posts |
| Feet | Shock-Absorbing Rubber Feet |
| Dimensions and Weight | |
| Height | 480 mm (18.89") |
| Width | 432 mm (17.00") |
| Depth | 658 mm (25.92") |
| Net Weight | 31.1 kg (68.6 lbs) |
