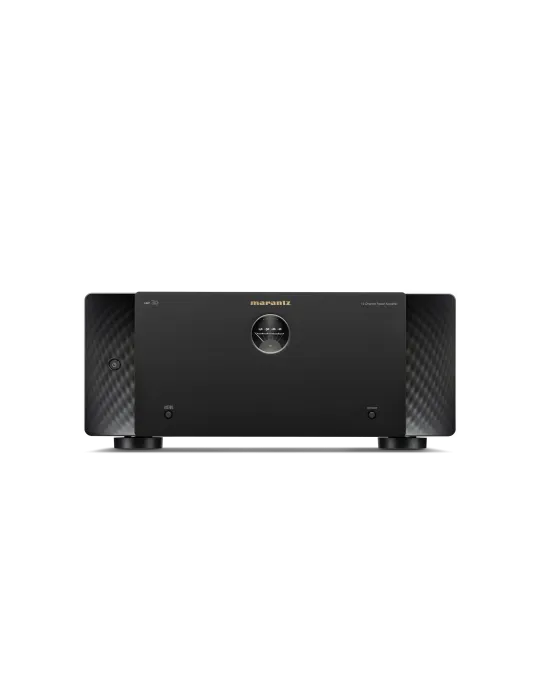

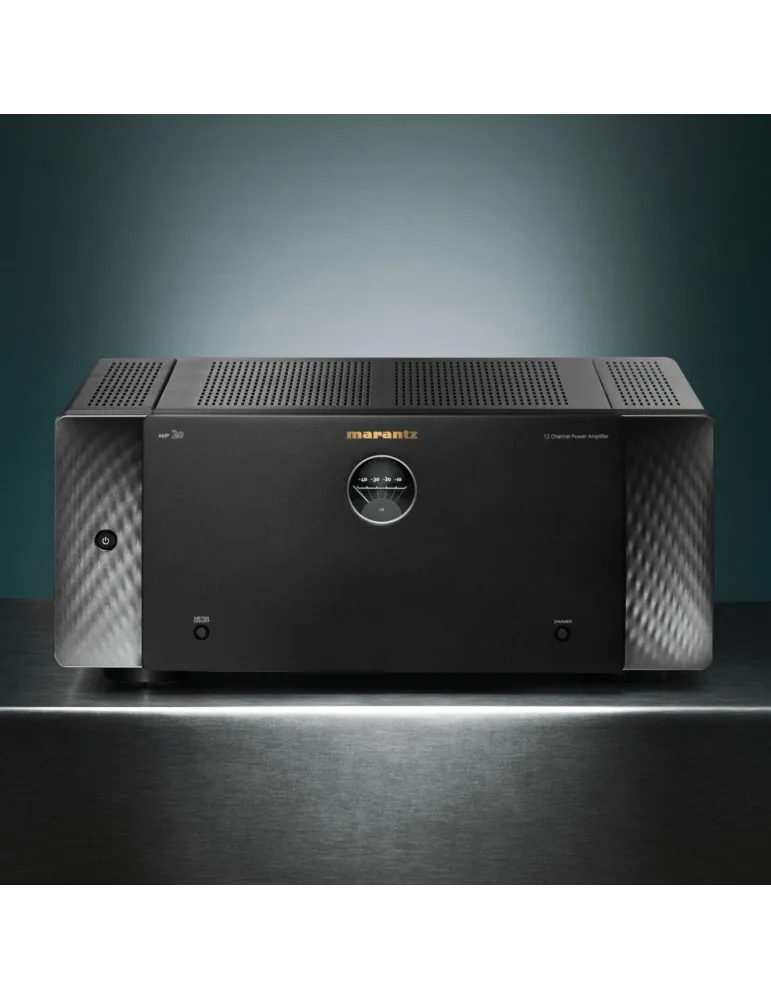

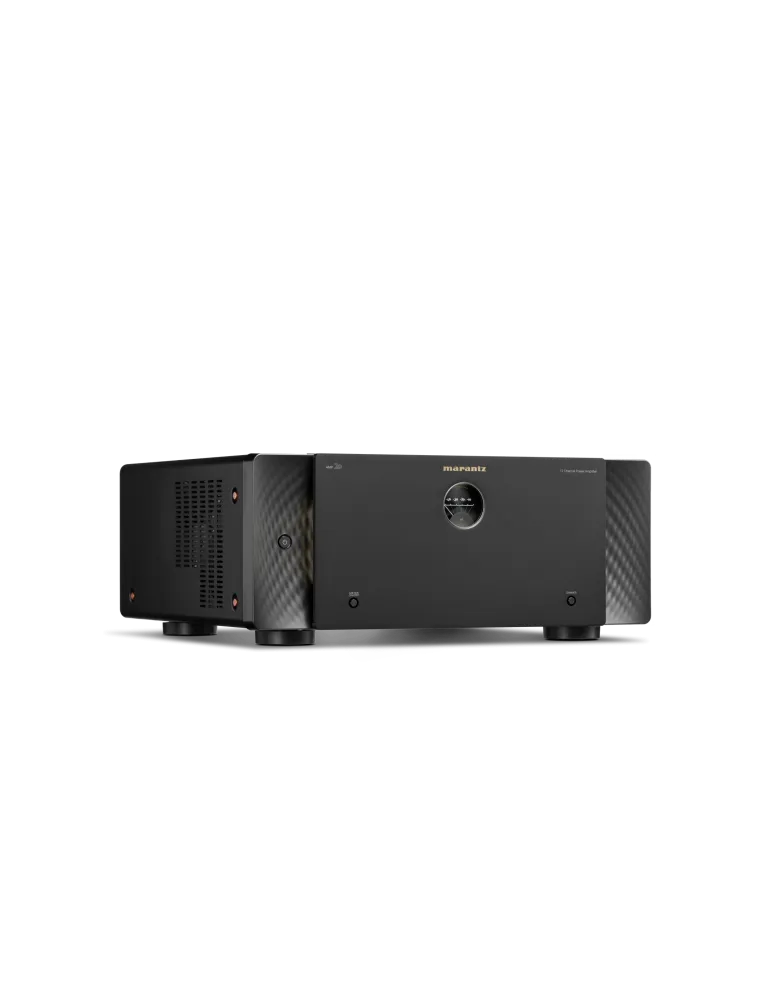

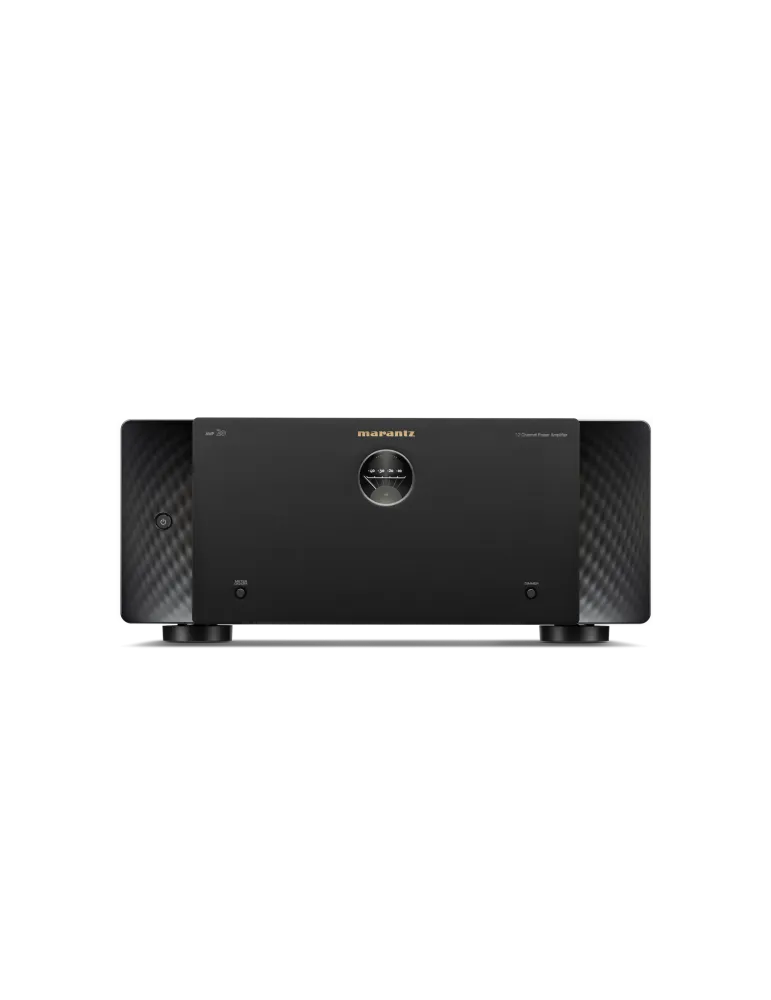

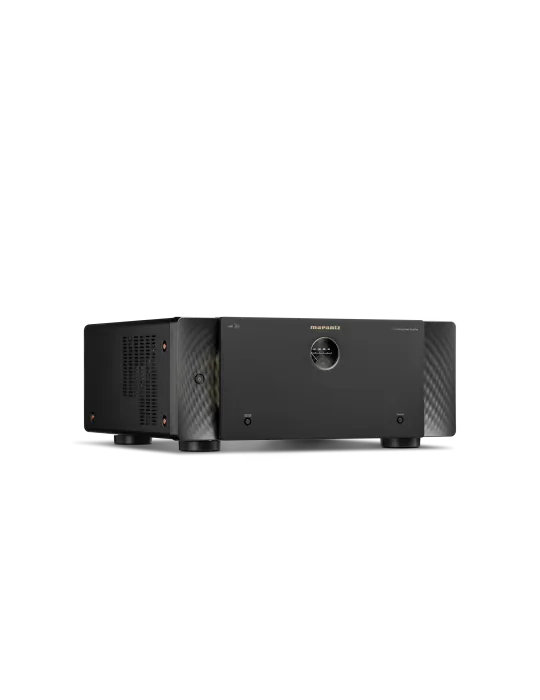

Marantz AMP20 12ch power amplifier
Write your review
AMP 20 is a remarkably powerful 12-channel amplifier, and can be paired with AV 20 for an elite, reference-level home theater system.
AMP20
€5,499.00
Tax included
Earn 549 points when you buy me!
worth €164.70!
AMP 20
Details & Specifications

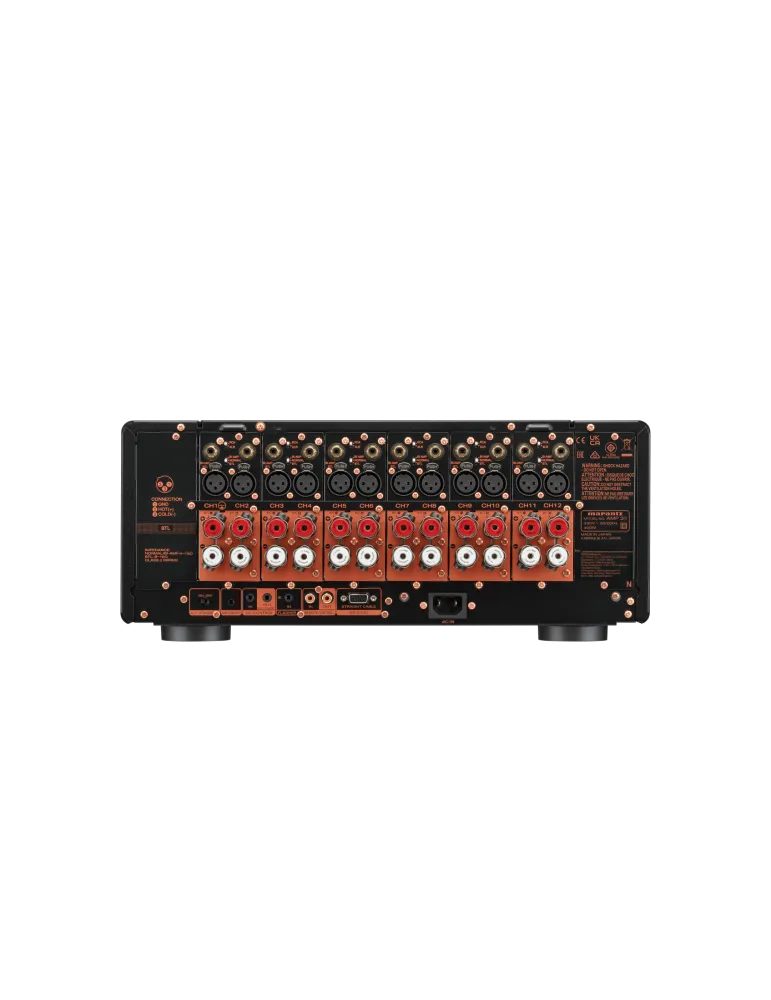

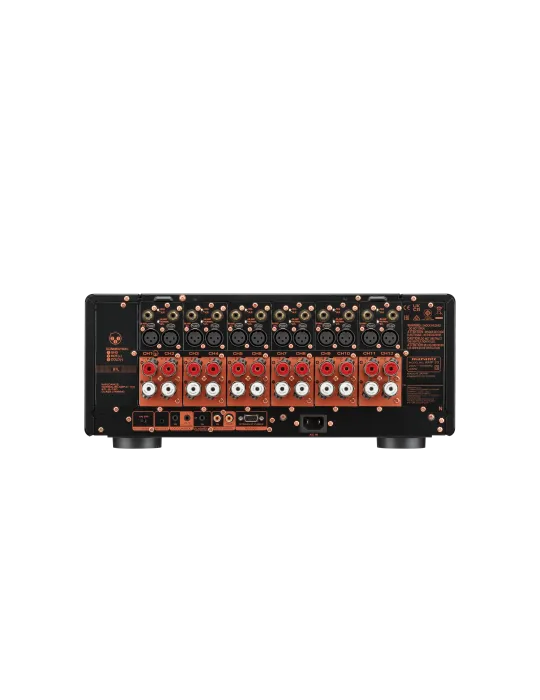

Inputs Outputs
- Main Amplifier in Balanced & Unbalanced: 12ch (Exclusive use by a selector switch.)
- Speaker Terminal SPKT-1+
- Number of Speaker Terminals 12
- Bi-Amp Drive /BTL Drive Yes / Yes
- Level Meter Yes
- Chassis Copper Plated
Multi-Room CI
- RS232 Control Yes
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Input/ Output 1 / 1
Specifications
- Number of poweramps 12
- Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
- Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
- Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
General
- Front Display Level Meter
- Auto Power Off Yes
- Metal Front Panel Yes
- Power Consumption 400W
- Power Consumption, No-Sound 110W
- Standby Consumption 0.2W
- Maximum Dimensions (W × D × H) 17.4 × 17.4 × 7.5 in.
- Weight 39.7 lbs
- What's in the box Main unit, quick start guide,
AC cord,Amp control cable,
Remote control cable,
SP terminal wrench - UPC code 747192143930
AMP20
