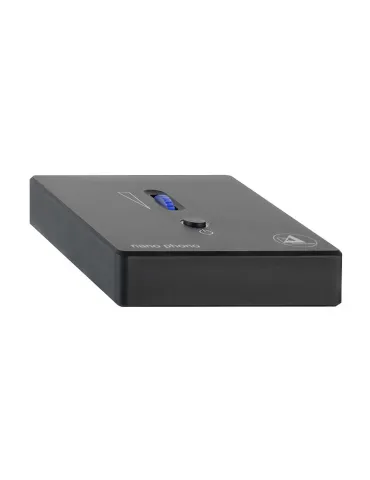

Clearaudio Nano Phono v2 Phono preamplifier
Write your review
The nano phono V2 phonostage isn't ruffled by anything. External interferences are no longer an issue with this fine piece of engineering.
€450.00
Tax included
Dispatch in 1-2 days
Earn 45 points when you buy me!
worth €13.50!
Manufacturer warranty for all products
Fast and secure delivery
14 days return policy
Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.
The nano phono headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.
| Specification | Detail |
|---|---|
| Modes | MM / MC (switchable by jumpers at the bottom) |
| Subsonic Filter | Switchable (by jumpers at the bottom) |
| Gain / Amplification | MM: 34 dB MC: 54 dB |
| Input Load (MM mode) | 47 kΩ / 220 pF |
| RIAA Accuracy | ± 0.4 dB from 20 Hz to 50 kHz |
| THD (Total Harmonic Distortion) | < 0.04% |
| Signal-to-Noise Ratio | MM: 81 dB (A) MC: 70 dB (A) |
| Headroom (MC mode) | 18 dB |
| Maximum Output Voltage | 10 V eff (1 kHz) |
| Channel Separation | > 80 dB at 1 kHz |
| Output Impedance | 75 Ω |
| Inputs | Unbalanced (RCA) |
| Outputs | Unbalanced (RCA); optional headphone output (3.5 mm jack, headphone version) |
| Power Supply | External supply, ±18 V DC / 300 mA |
| Power Consumption | Operation: ~2.3 W Standby: < 0.3 W Off: 0.0 W |
| Dimensions (W × D × H) | 85 × 106 × 25 mm (3.35 × 4.17 × 0.98 in) |
| Weight | ~500 g (including preamp & power supply) |
| Material / Finish | Aluminium, silver or black finish |
