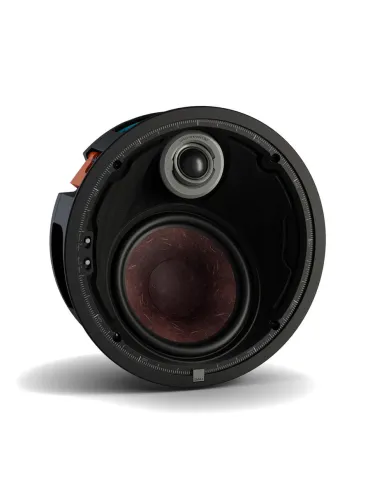

DALI Phantom M-80A in-ceiling speaker

Main Features:

• Adjustable Sound Direction
  The speaker features a 7″ woofer angled at 25° and an adjustable tweeter, allowing precise sound dispersion. Compass markers on the front panel make orientation easy and accurate.
• Discreet Design with Immersive Sound
  The angled drivers create a spacious and immersive soundstage, perfect for use as front, center, surround, or height channels – ideal where floor or wall space is limited.
• Natural and Color-Free Audio
  The paper and wood fiber cone with an SMC magnet system ensures natural, neutral sound with rich bass performance. The 28 mm soft dome tweeter delivers detailed and extended high frequencies with a smooth transition between ranges.
• Quick and Easy Installation
  Featuring a dog-leg mounting system and magnetic grille, installation is simple and tool-free. With only 134 mm mounting depth required, compass markers assist in aligning the sound direction precisely.
• Sound Adjustment Options
  Front-mounted switches “Normal/High+” and “Normal/Mid+” allow fine-tuning of the tweeter and midrange levels up to +3 dB, depending on placement and listening preferences.

Technical Specifications:

• Frequency Range (±3 dB): 48 – 27,000 Hz
• Sensitivity (2.83 V/1 m): ~86.5 dB
• Nominal Impedance: ~6 Ω
• Maximum SPL: ~106 dB
• Crossover Frequency: 2,500 Hz (2-way)
• Recommended Amplifier Power: 50 – 250 W
• External Dimensions (with grille): Ø 289 × 138.5 mm
• External Dimensions (without grille): Ø 278 × 138 mm
• Cut-out Diameter: Ø 261 mm
• Mounting Depth: 134 mm
• Recommended Back-box Volume: 15 – 100 L (optimum ≈ 25 L)
