TAGA Harmony TCW-480R Slim in-ceiling speaker (pc)

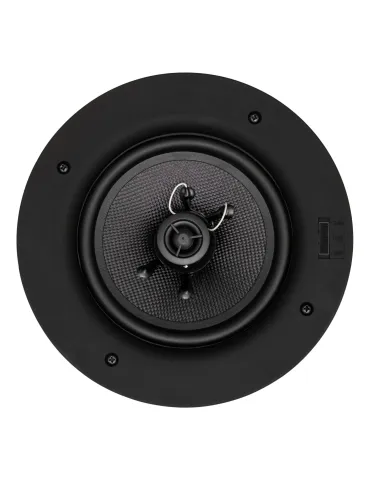

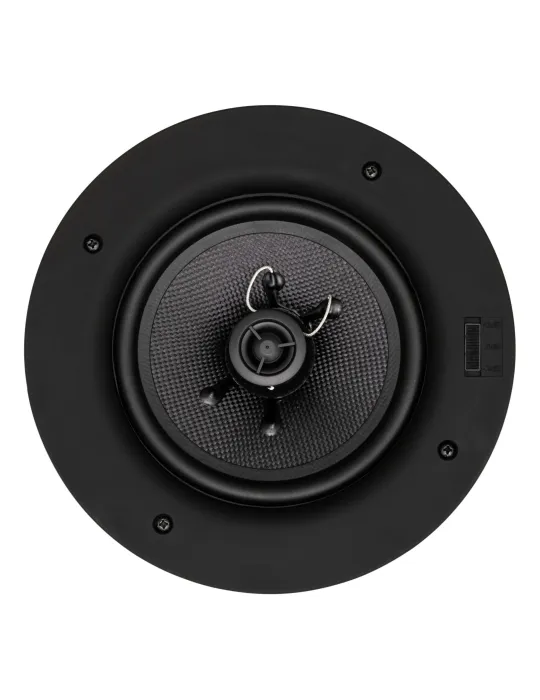

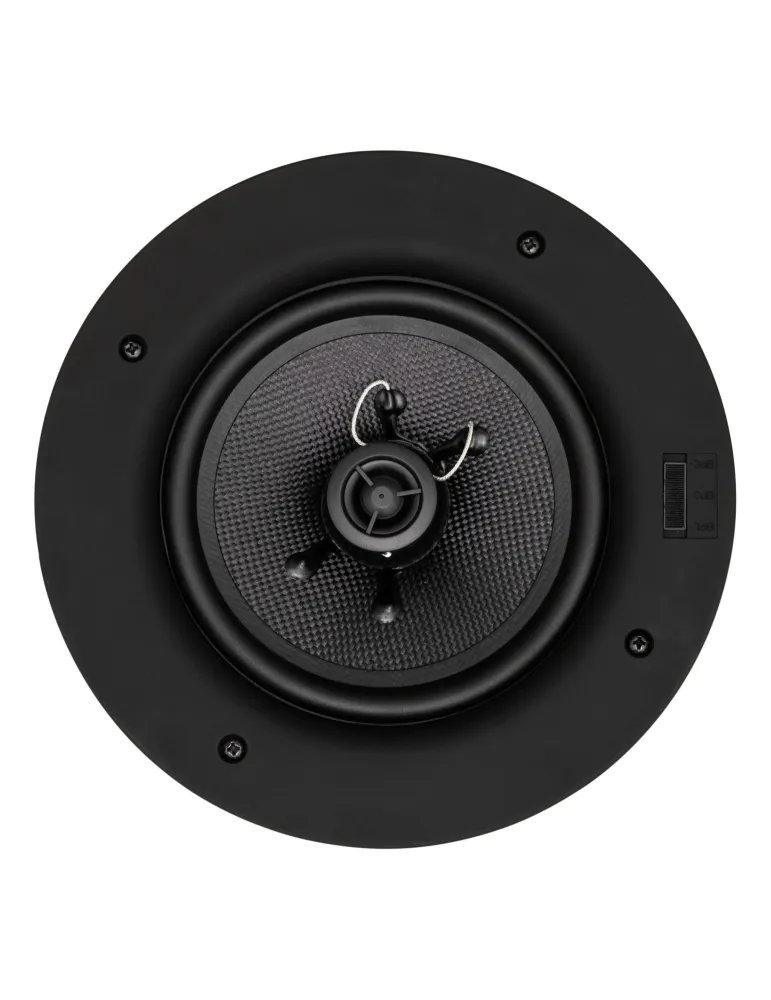

TAGA Harmony TCW-480R SLIM – two-way in-ceiling speakers. They use a 13 mm PEI tweeter and a 165 mm Kevlar® bass driver, while the slim cabinet permits a minimum mounting depth of 65 mm.
- Treble adjustment: ±3 dB to compensate for speaker placement and room acoustics.
- Paintable, magnetically mounted grilles with a low-profile bezel.
- Power handling: 75 W RMS and 100 W MAX.
TAGA Harmony TCW-480R SLIM In-Ceiling Speaker
The TCW-480R SLIM with its extra-slim cabinet allows installations in shallow places (only 65 mm deep) and high quality drivers and crossover deliver high quality sound performance. The speakers can be used in audio and home theatre systems as well as in commercial applications.
It utilizes a very rigid and strong injection-molded polymer chassis which minimizes distortion, vibrations and resonances and specialized mounting brackets that make installation very easy. Super low-profile bezel, magnetically mounted grill makes the speaker to almost disappear in the room.
Key Features
- EX extra-slim cabinet - allows installations in shallow places, with a minimum mounting depth of 65 mm.
- TSLB magnetically mounted grill - a super low-profile bezel helps the speaker almost disappear in the room.
- TIMPC injection-molded polymer chassis - designed to minimize distortions, vibrations or resonances.
- TEI mounting brackets - make installation very easy.
- PEI tweeter with treble switch - allows the treble level to be adjusted to compensate for speaker positioning and room anomalies.
- Kevlar® bass driver - a 165 mm (6.5”) driver in a two-way design.
- TEC binding posts - accept raw speaker cables and banana or pin plugs.
GRILL

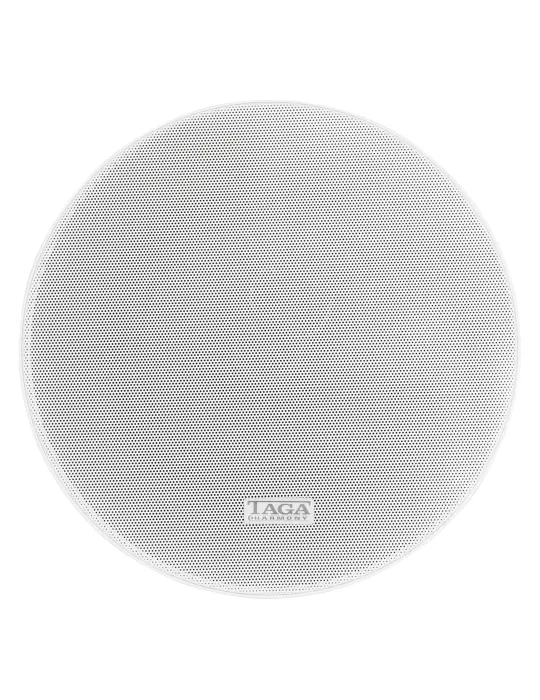

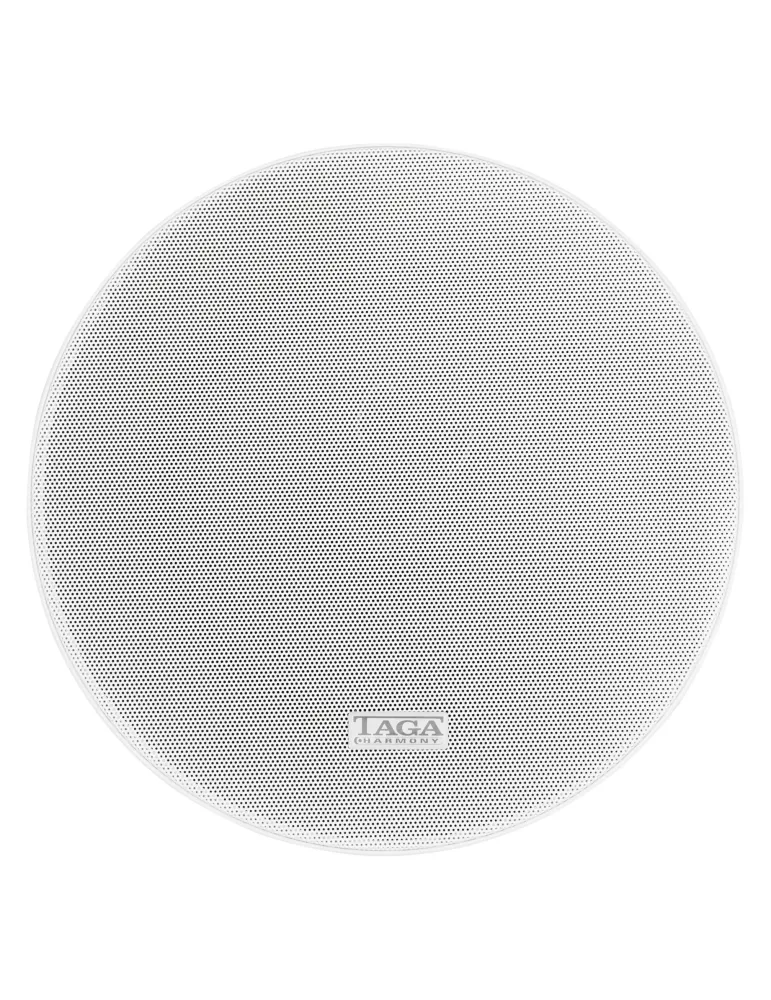

TSLB – TAGA Super Low-profile Bezel grill. All types of grills are paintable. The TSLB and RB grills are magnetically mounted and thanks to their design make a speaker virtually disappear in the ceiling or wall. The grill and front bezel are white.
CHASSIS & BRACKETS

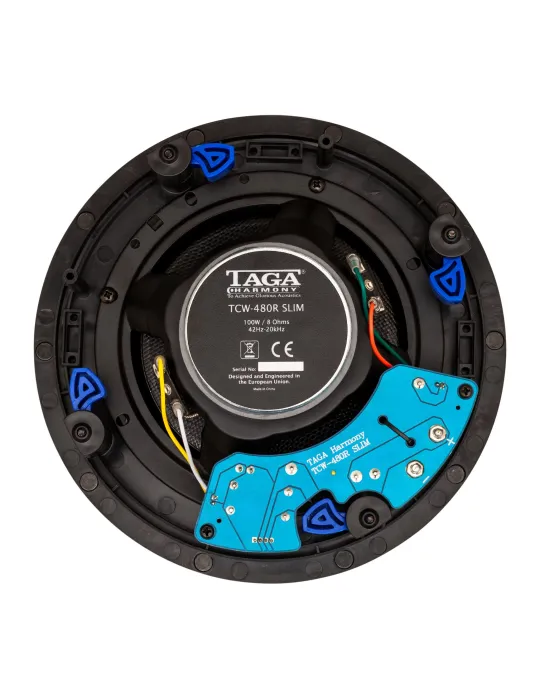

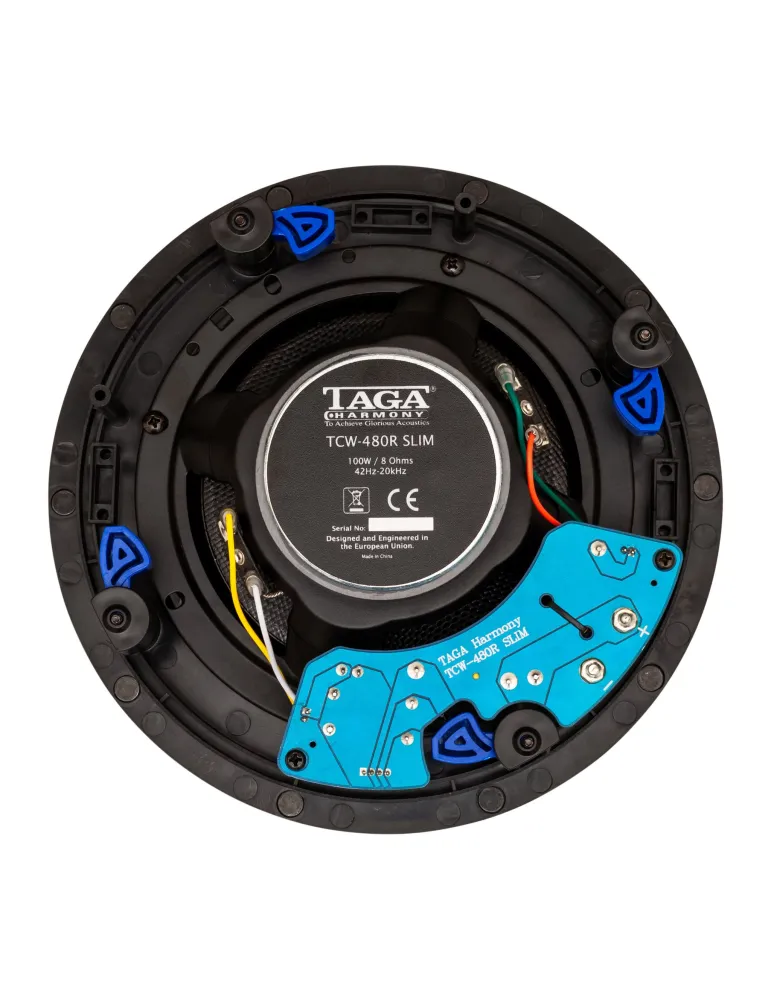

TIMPC - TAGA Injection-Molded Polymer Chassis is very rigid and strong to minimize distortions, vibrations or resonances. TEI – TAGA Easy Install mounting brackets are extremely easy and safe to install. EX - EXTRA SLIM cabinet allows installations in shallow places.
The speaker measures 234 mm in diameter and 67 mm deep, with a 204 mm cutout diameter and a minimum mounting depth of 65 mm. Weight is 1.05 kg per speaker.
HIGH-FREQUENCY DRIVER
The high-frequency driver is a 13 mm (0.5”) PEI dome. PEI DOME - tweeter is ferrofluid cooled and damped. The performance can be characterized as very accurate, clear, smooth and detailed as well as can handle high power inputs. We pay special attention to equal and flat dispersion of sound in and off the axis of the driver.
TREBLE SWITCH (environmental equalizer) - the treble level can be manually increased or decreased by few decibels to compensate for speaker positioning and room anomalies. The switch provides ±3 dB adjustment.
BASS-MIDRANGE DRIVER
The bass driver is 165 mm (6.5”) with a Kevlar® cone. Depending on the application we use Kevlar® or polypropylene cones and heavy duty voice coils and coil formers are responsible for high power handling as well as deep, precise and detailed bass and rich, sweet midranges.
CROSSOVER
We use high quality, close-tolerance and precisely selected crossover components and internal wires for absolute sound neutrality, high long-term power and reliability.
Power handling is 75 W RMS and 100 W MAX. Frequency response is 42 Hz - 20 kHz, impedance is 8 ohms and sensitivity is 90 dB.
BINDING POSTS
TEC – TAGA Easy Connection: selected speakers use high quality push-in banana binding posts accepting raw speaker cables up to 10AWG and most popular types of connectors (banana or pin plugs). Our binding posts make any installation a very easy task to do.
The TCW-480R SLIM combines a shallow mounting depth, paintable low-profile grill and adjustable treble in a two-way in-ceiling speaker for audio, home theatre and commercial installations.
Data sheet
- In-ceiling
| General Specifications | |
|---|---|
| Design | In-ceiling, 2-way |
| Power handling | 100W MAX; 75W RMS |
| Frequency response | 42Hz - 20kHz |
| Impedance | 8ohm |
| Sensitivity | 90dB |
| Drivers | |
| High-frequency driver | 13 mm (0.5”), PEI; ±3dB treble switch |
| Tweeter | Ferrofluid cooled and damped |
| Bass driver | 165 mm (6.5”), Kevlar® |
| Cabinet and Design | |
| Enclosure | EX extra slim enclosure |
| Chassis | TIMPC - TAGA Injection-Molded Polymer Chassis |
| Grill | TSLB magnetically mounted grill |
| Mounting bracket | TEI mounting bracket |
| Finishes | White |
| Paintable grills / front bezels | Paintable |
| Connectivity | |
| Binding posts | TEC – TAGA Easy Connection: push-in banana binding posts accepting raw speaker cables up to 10AWG and banana or pin plugs |
| Dimensions and Weight | |
| Dimensions (H x W x D or Dia x D) | 234 x 67 mm |
| Cutout Dimensions (H x W or Dia) | 204 mm |
| Minimum Mounting Depth | 65 mm |
| Weight | 1.05 kg / pc. |
