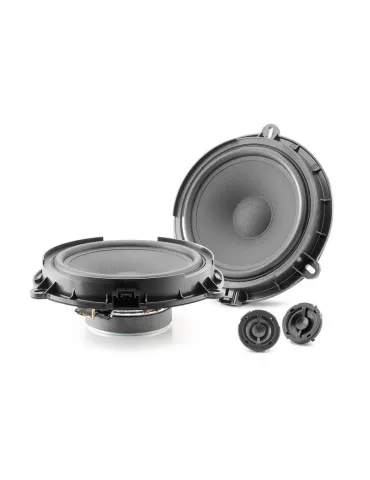

Focal IS Ford 165 component speakers

Focal IS FORD 165 – a two-way car component speaker kit. Its 6.5-inch woofer uses a Polyglass cone for natural sound without added coloration, while the aluminium inverted-dome tweeter reproduces treble clearly in different directions.

  • Power and impedance: 60 W RMS nominal power, 120 W maximum power and 4 Ω nominal impedance.
  • Installation: Vehicle-specific connectors need no soldering or cable cutting; integrated spacers fit the original locations.
  • Compatibility: Listed for Ford Kuga, Ranger front locations, F-Series, Focus and Fiesta, plus Lincoln MKX and Navigator rear locations. Vehicles need tweeter slots.
Focal
€169.00
Tax included
Quantity
Available by order

Loyalty Points
Earn 16 points  when you buy me!
worth €4.80!
  Manufacturer warranty for all products
  Fast and secure delivery
  14 days return policy
Description

Focal IS FORD 165 2-Way Component Kit

The IS FORD 165 2-way component kit is designed for all drivers who wish to replace their original audio system with a quality sound solution. The speaker drivers employ Polyglass technology, which delivers well-defined midrange and bass, and the Aluminium inverted dome tweeter, a Focal technology that provides perfect treble reproduction. This kit is designed for vehicles that have tweeter slots.

Key Features

  • Polyglass cone - natural sound without coloration.
  • Aluminium inverted dome tweeter - smoothness and definition of sound in every direction.
  • Butyl surround - excellent durability.
  • Vehicle dedicated connector - no welding and no cables to cut.
  • Chassis-integrated spacer - integration in the original locations.
  • Isolation foam rings - continuous insulation between the speaker drivers and the door fitting.
  • Quick and easy install - no modifications needed on the vehicle and no additional accessories required.

Focal Inside

With more than 50 brands and 1,000 vehicle models covered, the Focal Inside range offers tailor-made configurations ensuring perfect compatibility. Replace your vehicle’s audio system easily without modifying the interior by choosing a Plug & Play hi-fi solution. Add amplification and subwoofers for a richer sound experience and impactful bass.

INSTALLATION

The vehicle dedicated connector requires no welding and no cables to cut. The chassis-integrated spacer allows integration in the original locations, while isolation foam rings provide continuous insulation between the speaker drivers and the door fitting. Installation is quick and easy, with no modifications needed on the vehicle, invisible integration and no additional accessories required.

Ford: Kuga, Ranger front locations, F-Series, Focus, Fiesta. Lincoln: MKX, Navigator rear locations.

Mounting depth is 42.5 mm and the listed cut-out diameter is 205.5 mm. The listed weight is 0.86 kg.

Polyglass membrane

The Polyglass cone provides natural sound without coloration. The woofer measures 6.5 inches (165 mm), with a 1-inch (25 mm) voice coil, ferrite magnet and butyl surround. The woofer crossover is integrated.

Maximum power is 120 W, nominal power is 60 W RMS and sensitivity is 91.7 dB (2.83 V/1 m). Nominal impedance is 4 Ω. The manufacturer’s page lists frequency response as 60 Hz–21 kHz (±3 dB); the product sheet lists 60 Hz–20 kHz.

Aluminum tweeter

The compact Aluminium inverted dome tweeter is a Focal technology that provides treble reproduction with smoothness and definition of sound in every direction. The tweeter crossover is on line.

Specifications
Design
Weight860 g / 0.9 kg
Cut-Out diameter205.5 mm / 9 in
Depth behind surface (Mounting depth)42.5 mm
ConnectorVehicle dedicated connector
SpacerChassis-integrated spacer
IsolationIsolation foam rings
Sound - Acoustics
Product type2-way separate kit
MembranePolyglass
Woofer6,5" (165mm)
Coil diameter1" (25mm)
Tweeter25mm
Tweeter designCompact Aluminium inverted dome
FilterWoofer: Integrated / Tweeter: Online
Frequency response (+/- 3dB)60Hz - 21kHz
Maximum power120 watts
MotorFerrite
Nominal Impedance4 Ω
Nominal power60 W RMS
Sensitivity (2.83V/1m)91.7 dB
Surround materialButyl
Compatibility
Vehicle requirementsDesigned for vehicles that have tweeter slots
FordKuga, Ranger front locations, F-Series, Focus, Fiesta
LincolnMKX, Navigator rear locations
