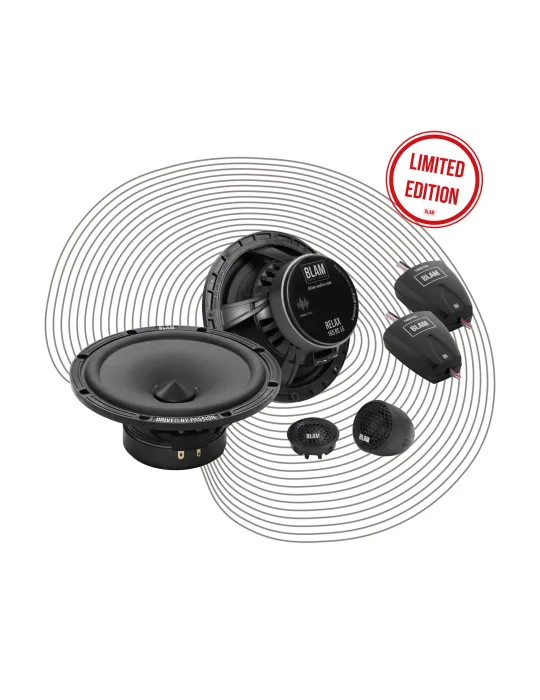

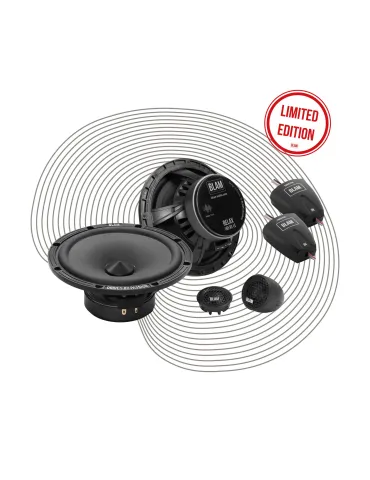

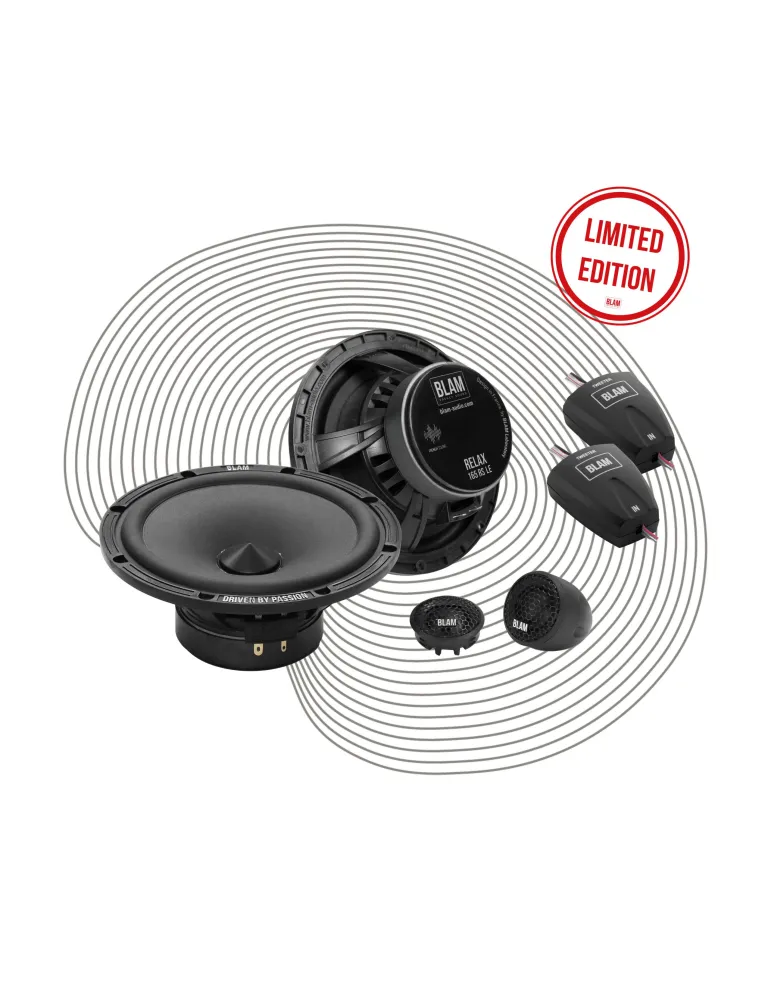

BLAM Relax 165RS LE component speakers

The 165mm 2-way separate speaker system includes two 165mm woofers, two 25mm soft dome tweeters and two separate 6dB/octave crossovers with adjustable tweeter level (-3dB, 0dB, +3dB). It offers a maximum power of 150W, a sensitivity of 95dB and a frequency response of 60Hz to 25kHz. Ideal for optimum sound performance, this kit uses high-quality components, including cellulose pulp cones and neodymium drivers.

Technical specification

This kit consists of two 165mm (6.5″) woofers, two 25mm (1″) soft dome tweeters and two separate 6dB/octave crossovers with adjustable tweeter level -3dB, 0dB and +3dB.

High-efficiency 2-way 165 mm system
Max. power 150 W – Nominal power 75 W
Frequency response 60 Hz – 25 kHz
Sensitivity 95 dB – Impedance 2 Ω

Composition

• 165 MM WOOFER
  165 mm (6.5″) woofer
  Maximum power 150 W / Nominal power 75 W
  Frequency response 60 Hz – 8 kHz
  Sensitivity 95 dB – Impedance 2 Ω


Fiberglass-reinforced composite saladier – High-quality treated cellulose pulp diaphragm – Butyl peripheral suspension – “Conex” long-life spider – Magnetic motor Long-life “Conex” spider – 25 mm coil on Kapton support – 85 mm x 17 mm magnetic motor – Thick magnetic circuit (5 mm)

• SOFT DOME TWEETER
  High-quality 20 mm soft dome tweeter
  Maximum power 100 W / Nominal power 10 W
  Frequency response 2.5 kHz – 25 kHz
  Sensitivity 90 dB – Impedance 3 Ω

N38 neodymium motor – Special high-quality soft dome – Ferrofluid for high power output

• Filtres 2 voies
  low-pass 6 dB/octave
  12 dB/octave high-pass with adjustable tweeter levels -3 dB, 0 dB and +3 dB.

Accessoires fournis :
Mounting screws
Mounting accessories for tweeters – incl. inclined stand
Operating instructions
