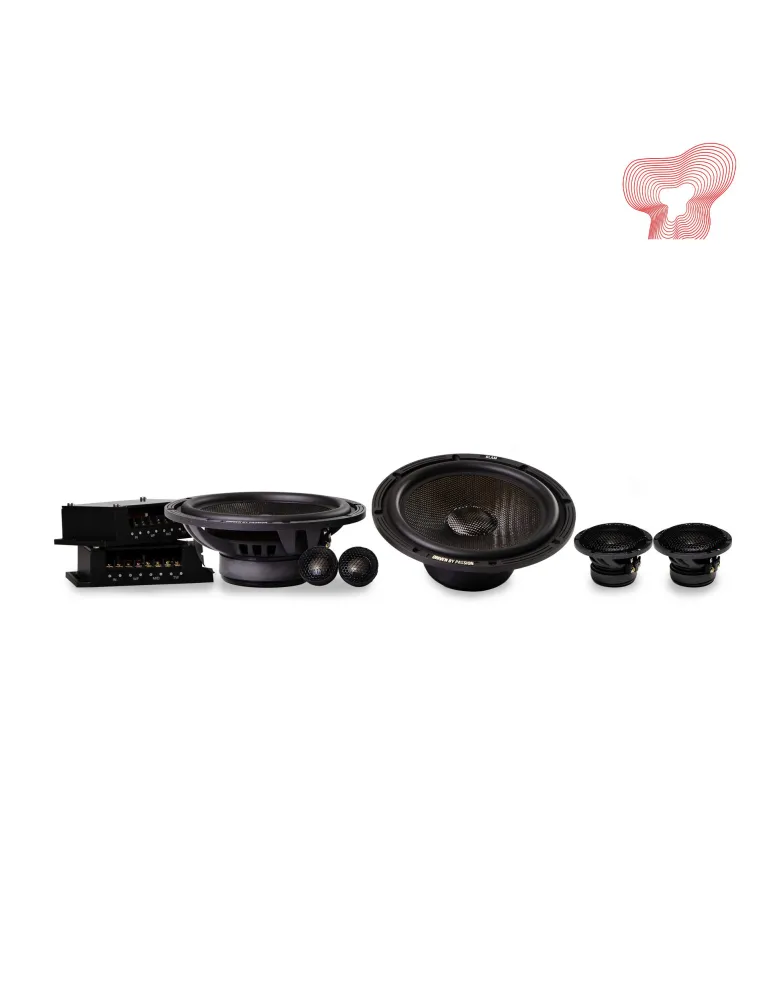

BLAM Signature S200.300 3-way component speakers

3 (2+1) WAY COMPONENT SPEAKER SYSTEM

This kit is composed of two 200 mm (8’’) woofers, two 25 mm (1’’) soft
dome tweeters and two external crossovers 6/12/12 dB/octave with
adjustable tweeter level +3 dB, 0 dB or -3 dB.

Composition

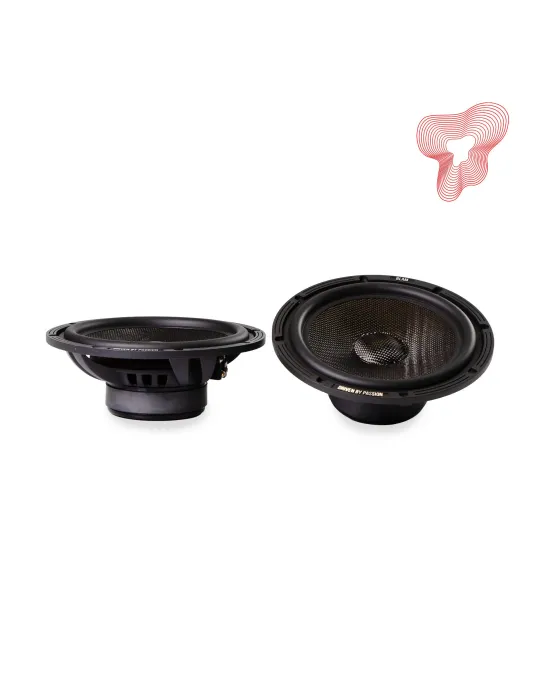

WS8.100 HIGH POWER WOOFER
• Woofer 8’’ (200 mm)
• Mounting depth 67 mm (2.6’’)
• Maximal power 300 W / Nom. Power 150 W
• Frequency response 50 Hz – 3.8 kHz
• Sensitivity 93.4 dB – Impedance 2 Ω
Die cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround –
Long life ‘’Conex’’ damper – 38 mm (1.5’’) voice coil on fiber glass former –
100 x 20 mm (3.9’’ x 0.8’’) oversized magnetic motor – Gold plated terminal.

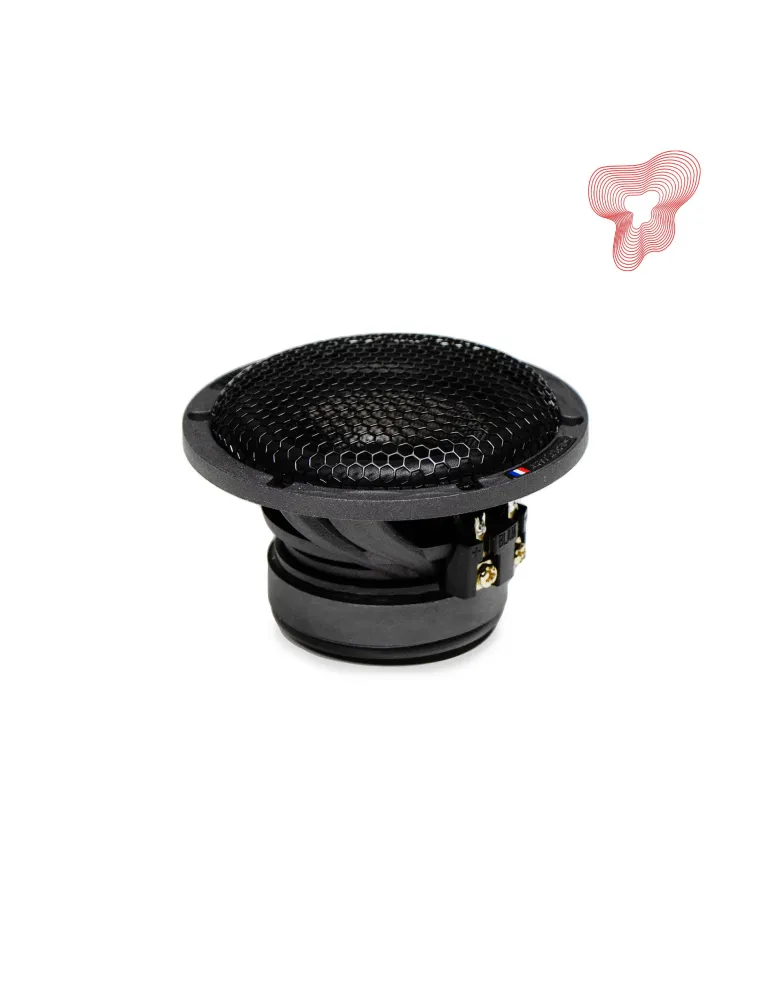

MS 3.55 HIGH EFFICIENCY MIDRANGE DRIVER
• Extended frequency 80 mm (3’’) midrange
• Maximal power 100 W / Nom. Power 25 W
• Frequency response 200 Hz – 27 kHz
• Mounting depth 45.5 mm (1.8’’)
Die cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround –
Long life ‘’Conex’’ damper – 20 mm (0.8’’) voice coil, fiberglass former –
55 x 10 mm (2.2’’ x 0.4’’) magnetic motor – Aluminium dust cap –
Gold-plated terminal.

OS80 compatible with MS3.55
MACHINED SOLID ALUMINIUM SEALED ENCLOSURE
Available in two colors: light grey and mat black

TSM 25 S 45 HIGH QUALITY CROSSOVER

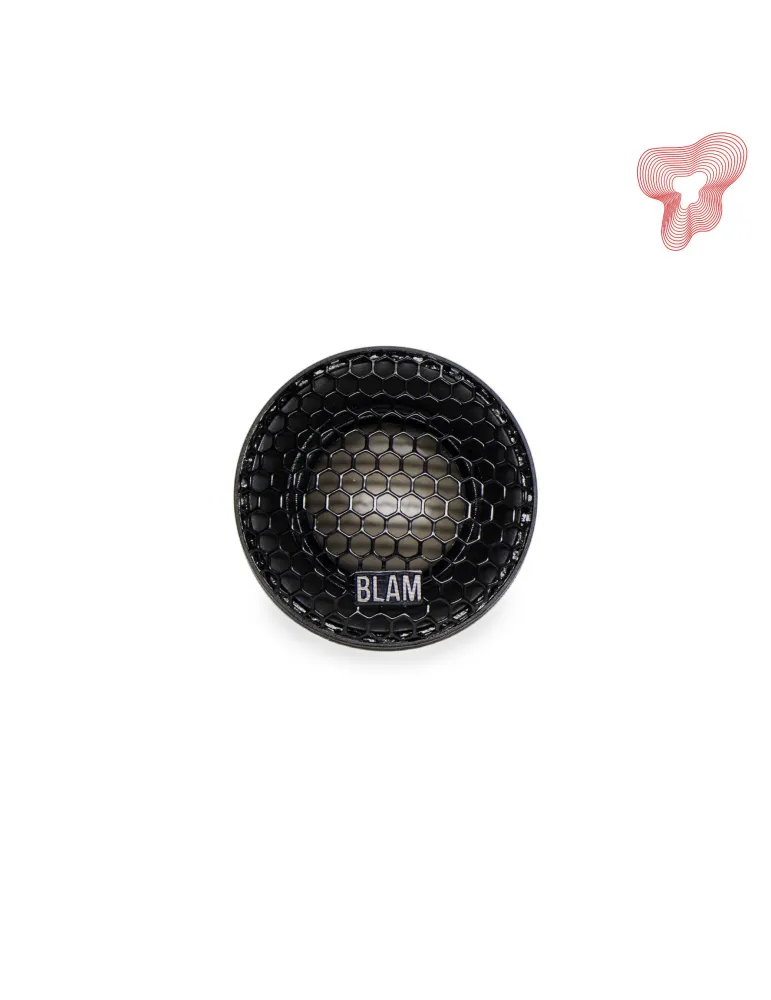

• 25 mm (1’’) soft dome tweeter
• Maximal power 100 W / Nom. Power 15 W
• Frequency response 2.5 kHz – 30 kHz
• Sensitivity 90.7 dB – Impedance 5 Ω
• Mounting depth 14.5 mm (0.6’’)
High efficiency neodymium magnet (N38) – High precision machined
aluminium faceplate –-Sound transparent protection grill- Angled support
included – Paired products at +/- 1dB.

BFX 03 AUDIOPHILE GRADE CROSSOVER
• 6/12/12 dB/octave 2+1 way audiophile grade crossover
• Crossover point: woofer/midrange: 300 Hz
• Super tweeter high pass: 10 kHz
