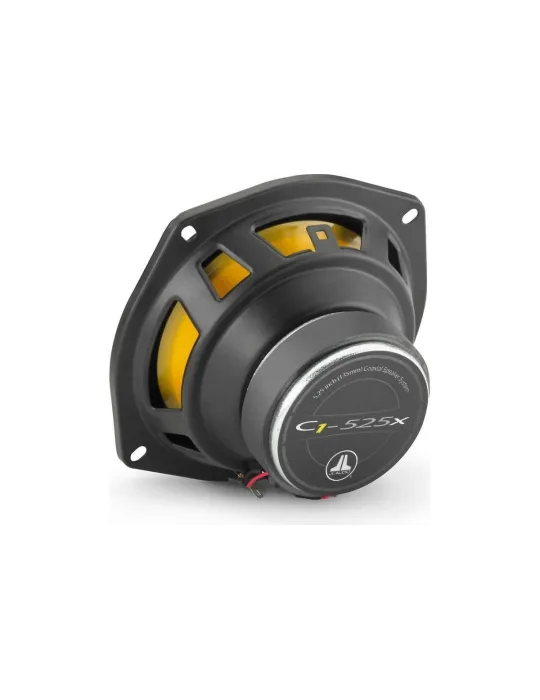

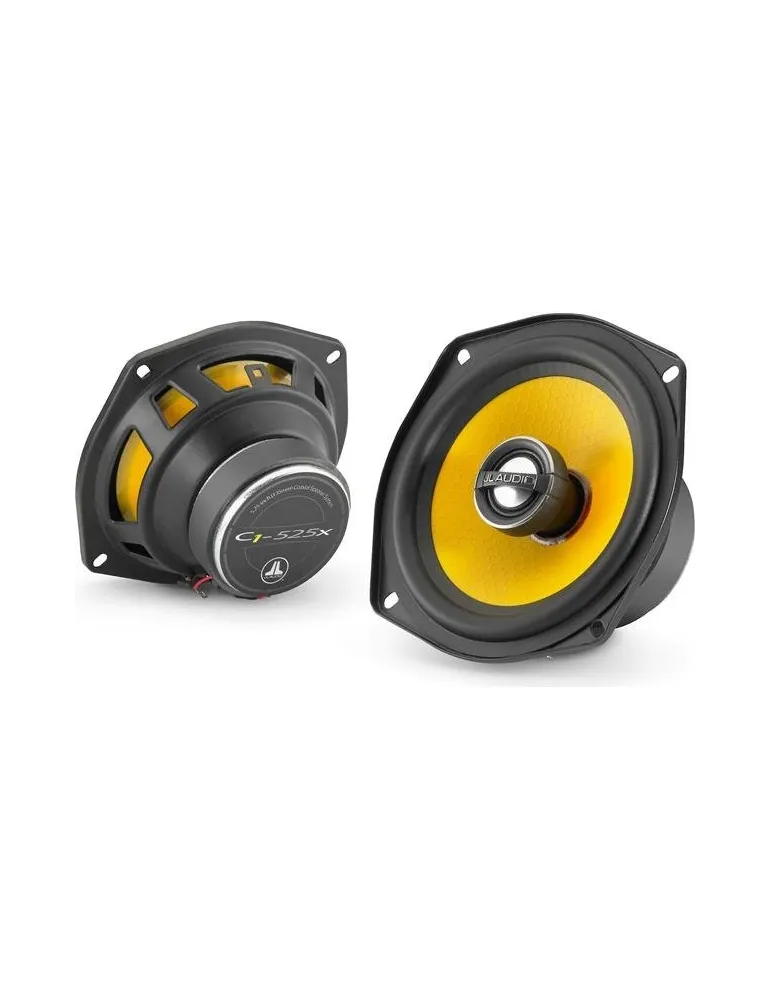

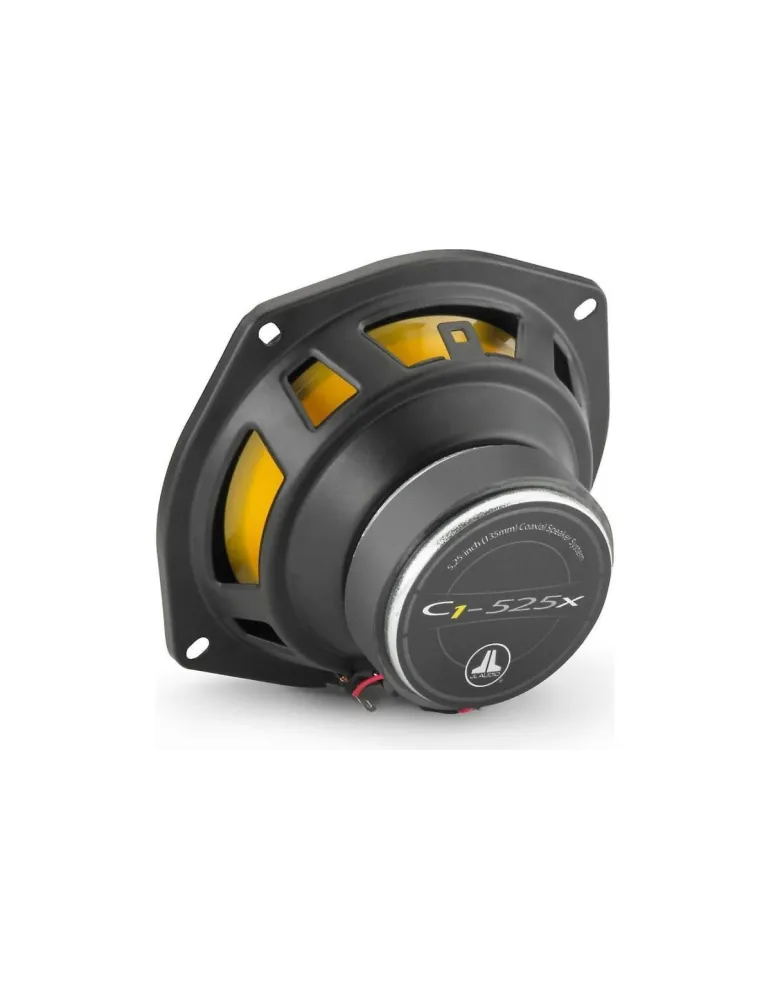

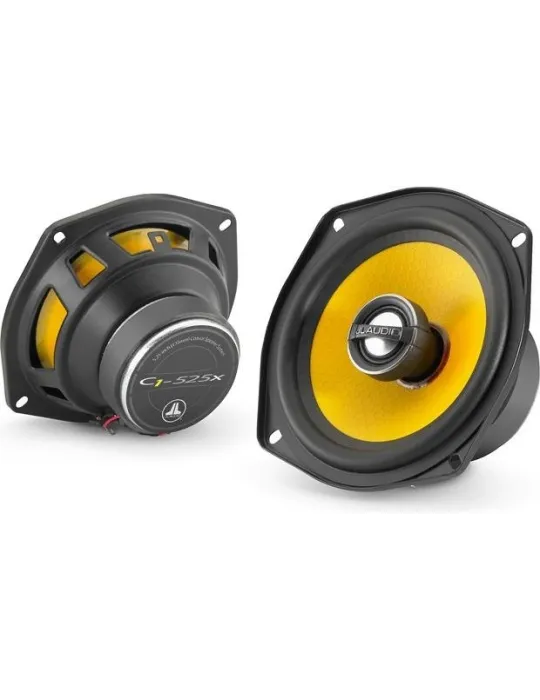

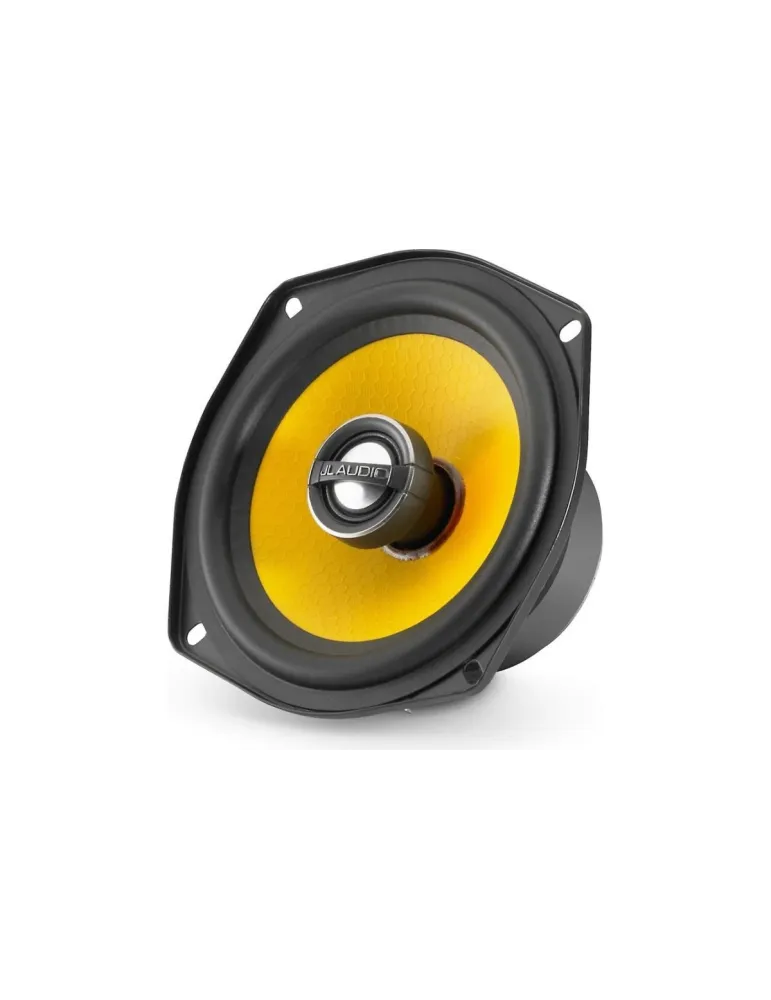

JL AUDIO C1-525X 13cm coaxial speakers (pair)

Kaina:
€129.00
Tax included Contact us for delivery time
Quantity
Delivery by order

Make an offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

General Specifications

Continuous Power Handling (RMS) 50 W
Peak Music Power 225 W
Recommended Amplifier Power (RMS) 10 - 75 W / Ch.
System Efficiency 89.0 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 54 Hz - 24 KHz ± 3 dB

Coaxial Physical Specifications

Table_Image
Frame Outer Diameter* (A) 5.83 in / 132 mm
Grille Tray Outer Diameter (B) N/A
Motor Outer Diameter (C) 2.76 in / 70 mm
Frontal Coaxial Tweeter Protrusion** (D) 0.54 in / 14 mm
Frontal Grille Protrusion (E) N/A
Mounting Hole Diameter (F) 4.70 in / 119 mm
Mounting Depth (G) 2.42 in / 62 mm
