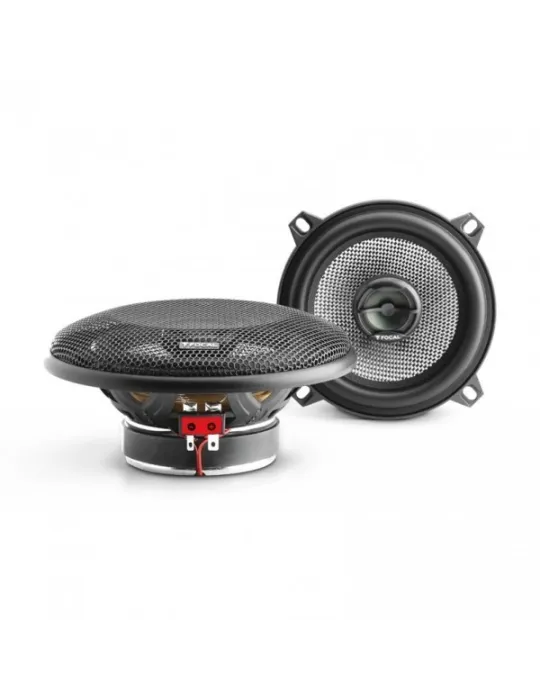

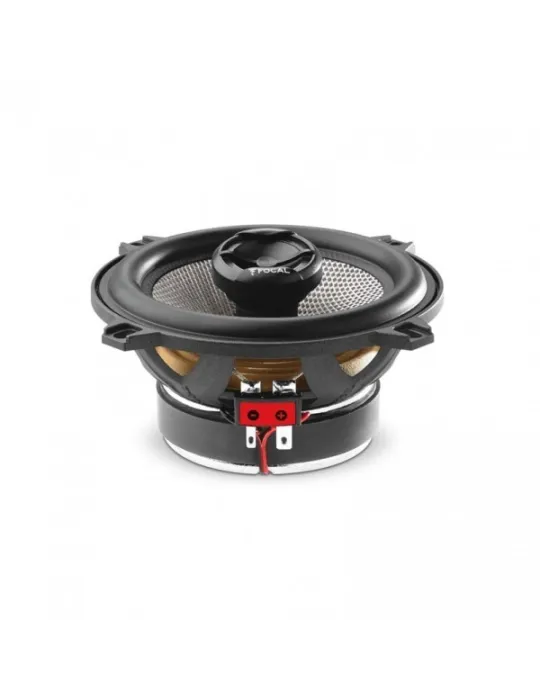

Focal Access 130 AC bendraašiai garsiakalbiai
A 2-way 13 cm coaxial speaker kit for car audio, featuring DFS fiberglass cones.
- 50 W power
- Aluminium inverted dome tweeters on swivelling, tilting mounts
- Integrated 4.7 kHz crossover
130 AC is a 2-way 13 cm coaxial kit. With the car audio kit 130 AC and its 13-centimeter diameter, you can enjoy dynamic sound in your car. The loudspeakers deliver 50 watts of power and can be easily integrated into the front or rear of the car. They mark the accessibility to the world of performance: remarkable power handling, deep bass, extended soundstage.
Key Features
- 2-way 13 cm coaxial kit
- (DFS®) Dual Fiberglass Structure cone
- Aluminum inverted dome tweeter
- Tilted tweeter on rotativ pod
- ABS basket with 20% of fiberglass
- Integrated crossover (4.7 kHz)
- Grilles new design
DYNAMIC SOUND
Benefiting from technical innovations born of Focal know-how, the loudspeakers offer high power handling and excellent bass response. DFS® diaphragm and 85 mm high-efficiency motor, worked coil, rigid ABS frame are the elements of choice for a powerful kit.
DFS membrane
(DFS®) Dual Fiberglass Structure cone. High resistance (Power, climatic conditions, humidity…).
Butyl surround. Longlife.
OPTIMIZED SOUNDSTAGE
The inverted dome tweeters are mounted on a swiveling, tilting stand to create a perfect soundstage in the passenger compartment. The integrated crossover (4.7 kHz) makes installation of the entire kit easy and straightforward: connect the loudspeakers to your vehicle and enjoy renewed sound.
Aluminum inverted dome tweeter. Accuracy, sound staging optimization.
Construction
ABS basket with 20% of fiberglass. Non magnetic, non resonant.
25mm (1’’) voice coil (2 Kapton® layer). High power handling. 85mm magnet. High sensitivity.
Grilles new design. Profiled.
A COMPLETE LINE
The 2-way coaxial kit can be combined with a subwoofer or two subwoofers for a new level of acoustic subtlety in your car.
Data sheet
- Bendraašiai
| TECHNICAL CHARACTERISTICS | |
|---|---|
| Woofer | 5" (130mm) |
| Voice-coil diameter | 1" (25mm) |
| Voice-coil height | 07/16" (11mm) |
| Magnet | 31/3" (85mm) |
| Tweeter | Aluminum inverted dome |
| Crossover | (4,7Khz) 6dB/oct |
| Max. power | 100 Watts |
| Nom. power | 50 Watts RMS |
| Sensitivity (2.83V/1m) | 89.3dB |
| Frequency response | 70Hz – 20kHz |
| Accessories | Supplied grilles |
| Design | |
| Type | 2-way coaxial kit |
| Surround | Butyl |
| Tweeter | Tilted tweeter on rotativ pod |
| Cone | (DFS®) Dual Fiberglass Structure |
| Basket | ABS basket with 20% of fiberglass |
| Voice coil | 2 Kapton® layer |
| Crossover | Integrated crossover |
| Grilles | Profiled |
