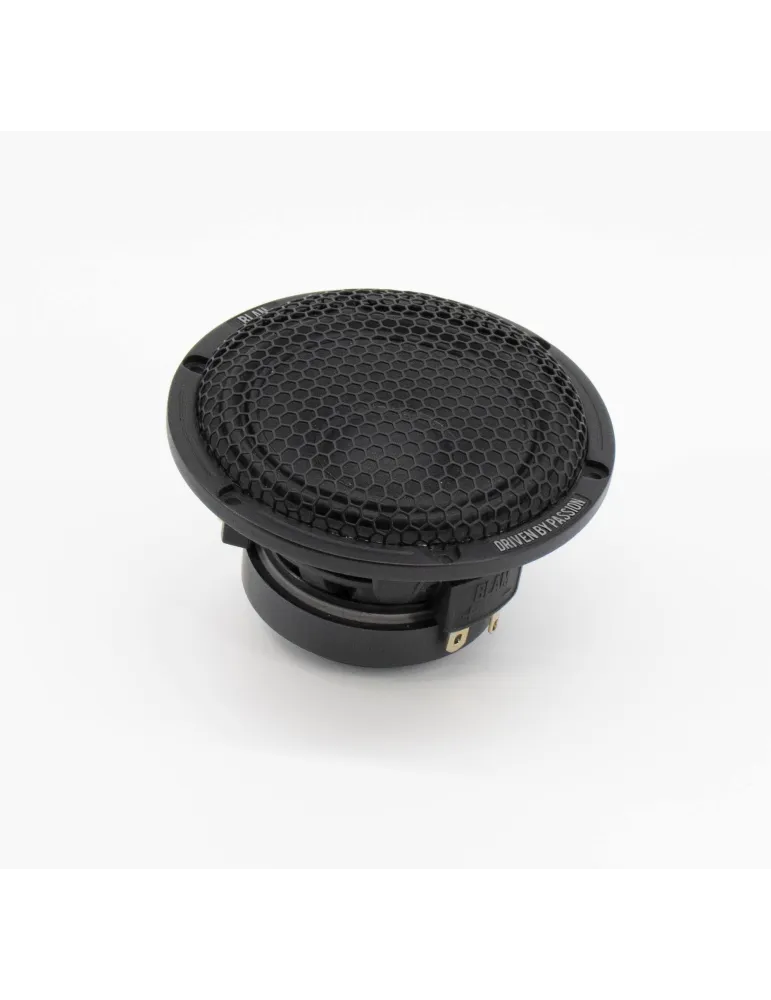

BLAM Relax R80 dB vidutinių dažnių garsiakalbis (vnt)

Dual voice coil mid-range driver 3” (80 mm)

Max power 100 W – Nominal power 25 W*
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω

*Depend upon the cut-off frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave

Composition

R80 dB 80 MM (3”) DUAL VOICE COIL DRIVER
Max power 100 W – Nominal power 25 W*
Frequency response 150 Hz – 20 kHz
Sensitivity 86 dB – Impedance 2×3 Ω
Mounting depth 45.5 mm (1.8″)

Composite basket reinforced in glassfiber – High quality treated cellulose pulp membrane – Butyl rubber surround – Long-life « Conex » damper – 20 mm (0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet

Recommended cut-off frequency 250 Hz 12 dB/octave

Supplied accessories:
Mounting screws
Protective grill
User manual
