The new PHANTOM E-60 S stereo speaker builds on the heritage of the highly acclaimed DALI PHANTOM E-60 in-ceiling speaker - featuring two 20 mm soft dome textile tweeters.

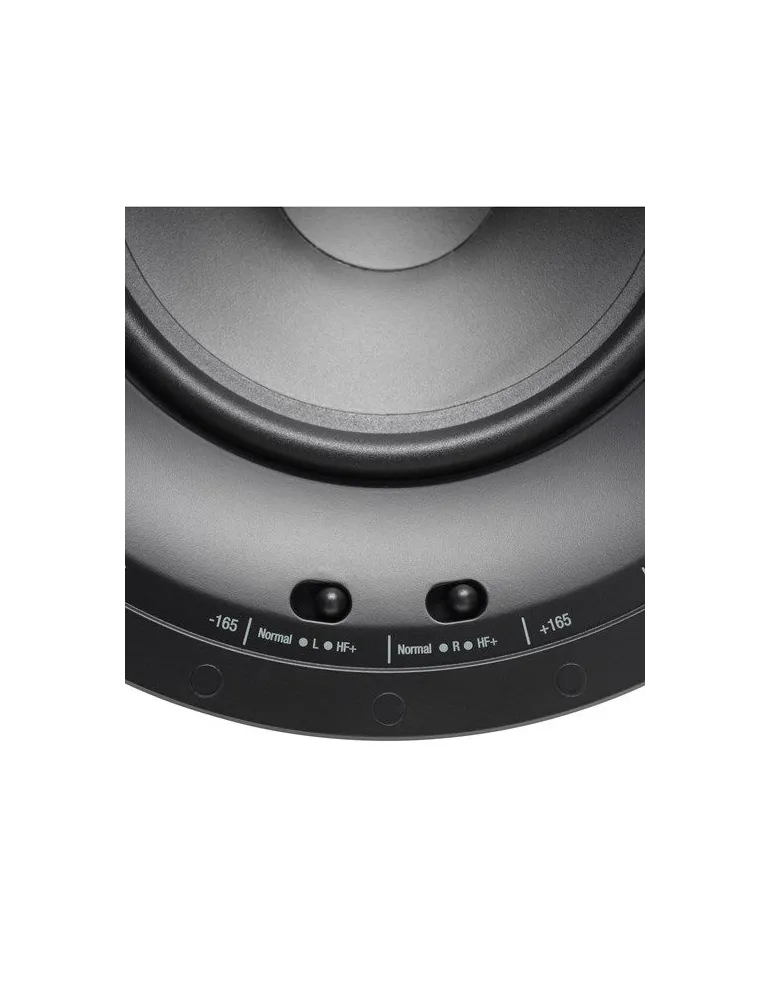

With a distance of 144 mm between the tweeters, you will experience a wider-than-average perspective from this true stereo speaker. The signal path is a dual mono construction with separate inputs and crossover PCB's for each channel. Two switches ensure that both channels can be tuned for the acoustics of your listening room, resulting in fantastic integration and a high level of details.
Typical use will be for stereo in small to medium-sized rooms. It is also possible to apply the PHANTOM E-60 S as height speaker(s) in a multi-channel setup.
|Frequency Range (+/-3 dB) [Hz] ||57 - 25,000 |
|Sensitivity (2,83 V/1 m) [dB] ||90.0 |
|Nominal Impedance [ohms] ||2 x 8 |
|Maximum SPL [dB] ||105 |
|Recommended Amplifier Power [W] ||2 x 20-80 |
|Crossover Frequency [Hz] ||2,600 |
|High frequency driver, Quantity ||2 x 20 mm |
|High frequency driver, Diaphragm type ||Soft Textile Dome |
|Low frequency driver, Quantity ||1 x 6½" |
|Low frequency driver, Diaphragm type ||Polypropylene Cone (Dual voice-coil) |
|Enclosure type ||Open back |
|Connection Input ||2 x Single Wire |
|Magnetic Shielding || |
|Recommended Placement ||In-Ceiling |
|Functions ||2 x Normal/HF+ |
|Dimensions (ØxD) [mm] ||250 x 99.5 |
|Cut-Out Dimensions (ØxD) [mm] ||Ø225 |
|Accessories Included ||Cut-Out Template |
|Optional Accessories ||Square Grille |
|Weight [kg] ||2.0 |
