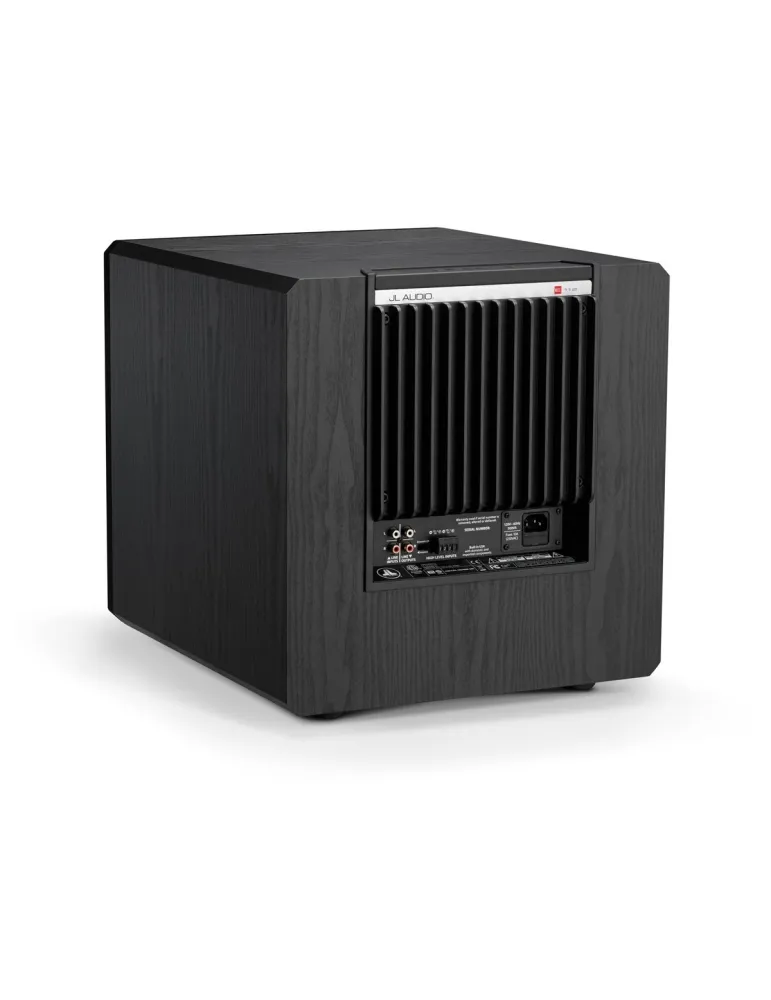

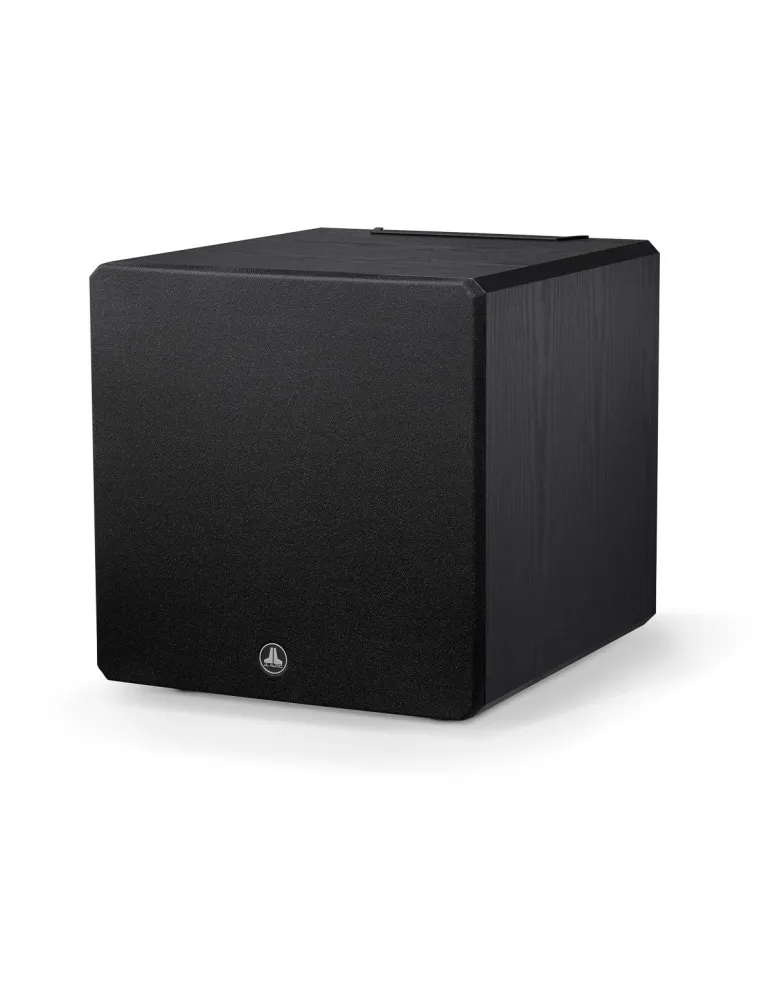

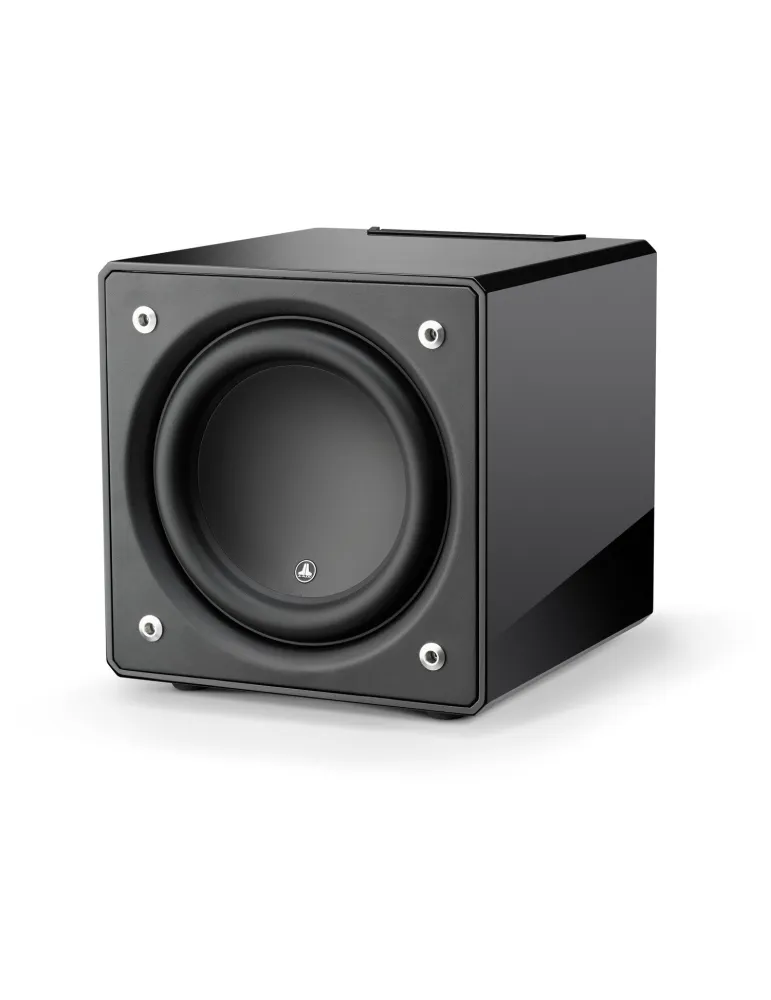

JL Audio E-Sub E112 Hi-end subwoofer | 12" 1500W

Kaina:
€1,990.00
Tax included Contact us for delivery time
Colour
Quantity
Delivery by order

Make an offer

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields

Loading

Applying a series of our key technologies, E-Sub powered subwoofers deliver exceptional sound quality, power and value in a wide range of demanding applications

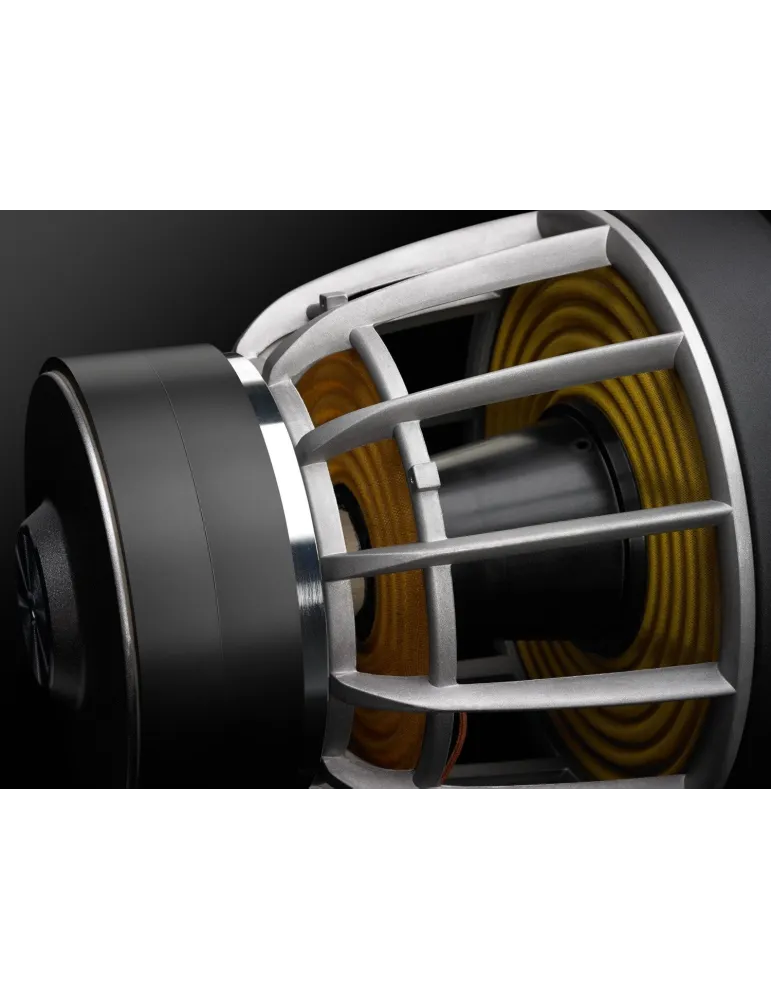

E-Sub drivers employ our exclusive DMA technology to optimize the drivers' motor strength, ensuring linear behavior over a very long excursion range. Unlike typical steady-state modeling systems, DMA takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material. The payoff offered by DMA optimization is a driver that faithfully tracks its input signal, at all listening levels, leading to superior bass definition and dynamics.

The extreme mounting depth of the E-Sub driver is very deliberate. It permits wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the E-Sub’s steel front mounting flange forms the entire front baffle of the finished product, while the driver’s back-plate is threaded and bolted to the rear wall of its enclosure for support.

To power these innovative drivers, we engineered a completely new switching amplifier with a regulated, switching power supply, making its chassis more compact, lightweight and efficient, while still delivering ample, clean power to fully exercise the E-Sub driver's performance envelope.

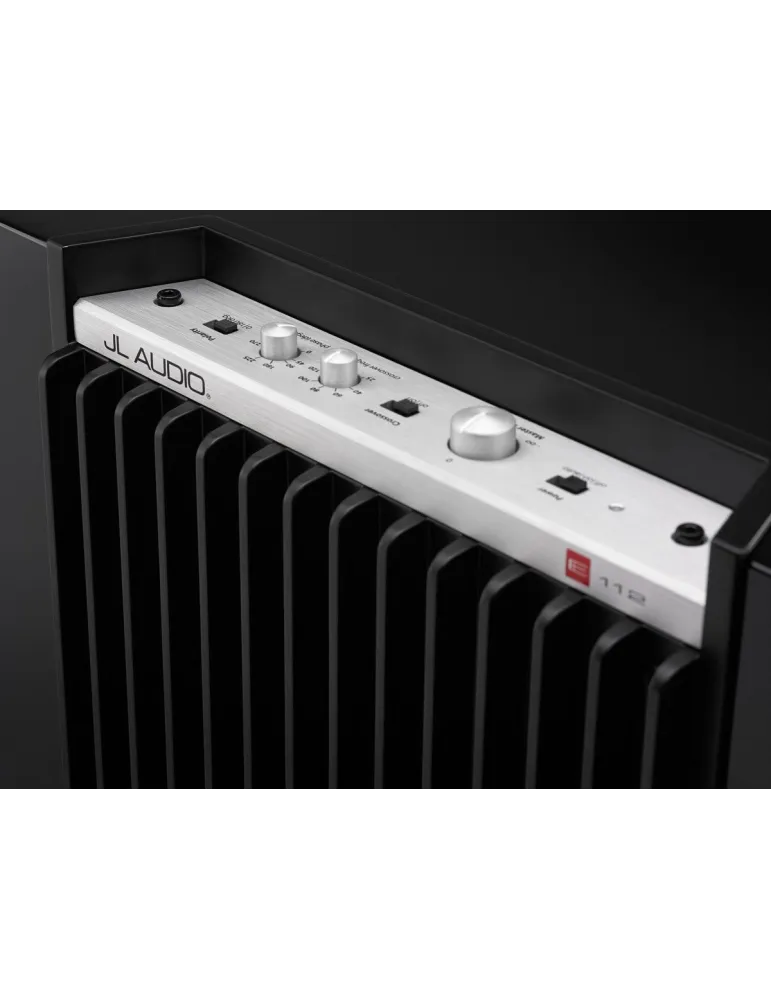

Conveniently controlled from the E-Sub cabinet’s top panel, the amplifier incorporates studio-grade signal processing to make adjustments a much more enjoyable experience than rear–mounted controls found on most powered subwoofers. An attractive cover hides and protects the controls during normal use.

Enclosure Type Sealed
Enclosure Finish Black Ash
Frequency Response (Anechoic) 22 - 118 Hz (±1.5dB)
-3 dB at 21 Hz / 120 Hz
-10 dB at 17 Hz / 153 Hz
Effective Piston Area (Sd) 84.4 sq in / 0.0545 sq m
Effective Displacement 235 cu in / 3.9 L
Amplifier Power 1500 W RMS short-term
Power Mode(s) Off, On or Automatic (Signal-Sensing)
Width (W) 15.5 in / 394 mm
Height (H) 16.23 in / 412 mm
Depth (D) 18.39 in / 467 mm
Net Weight 73.5 lb / 33.3 kg
